Description

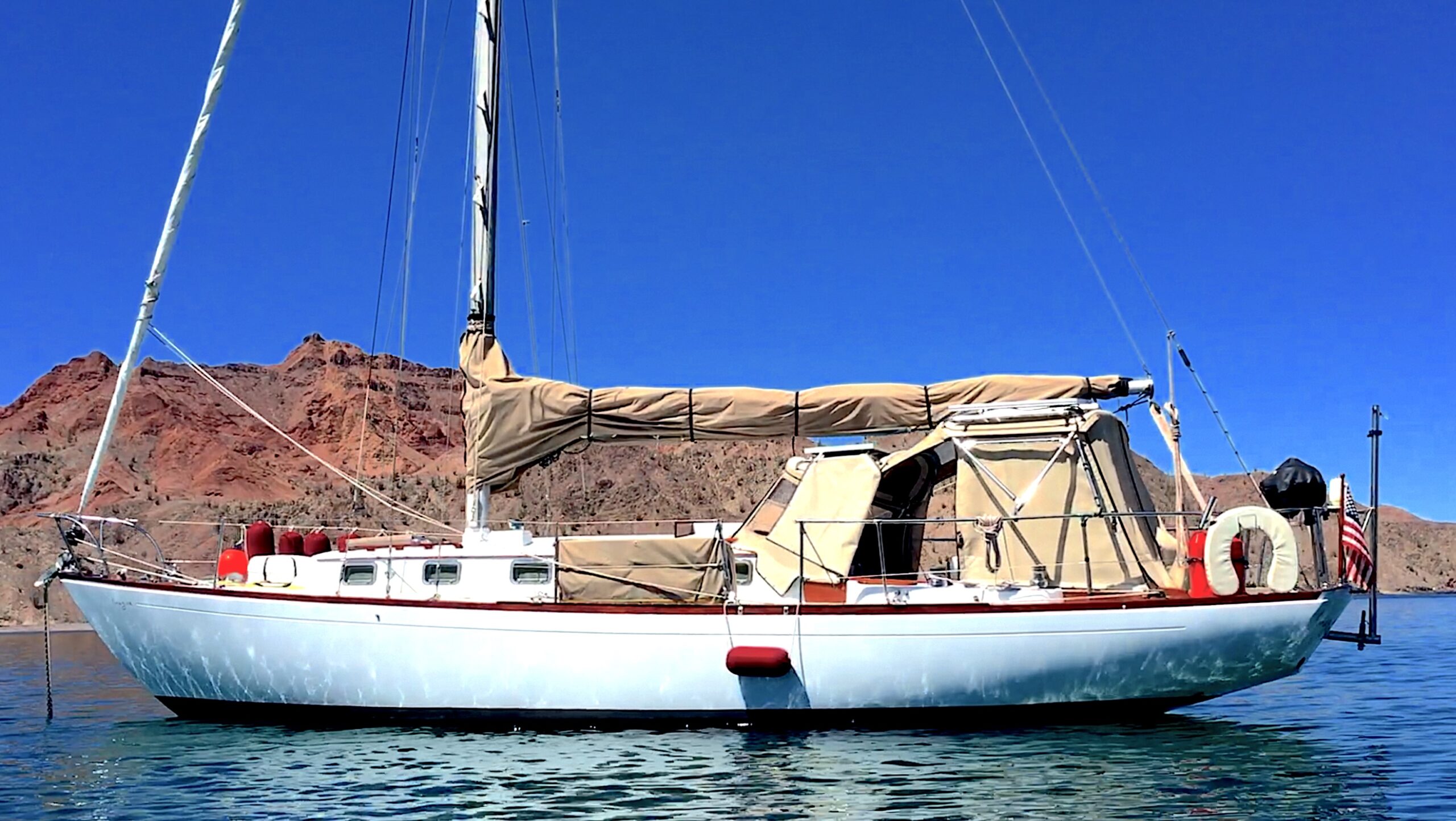

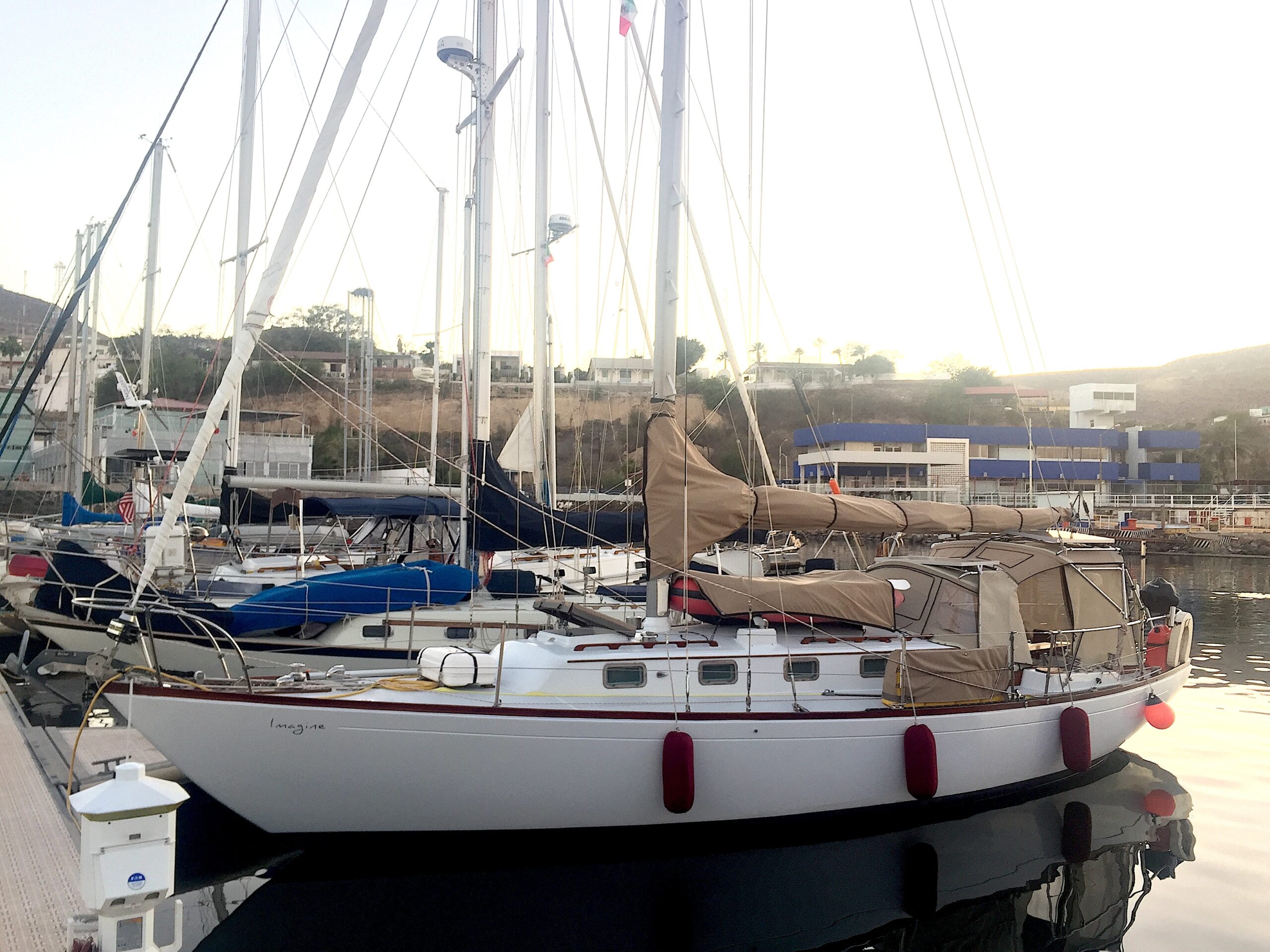

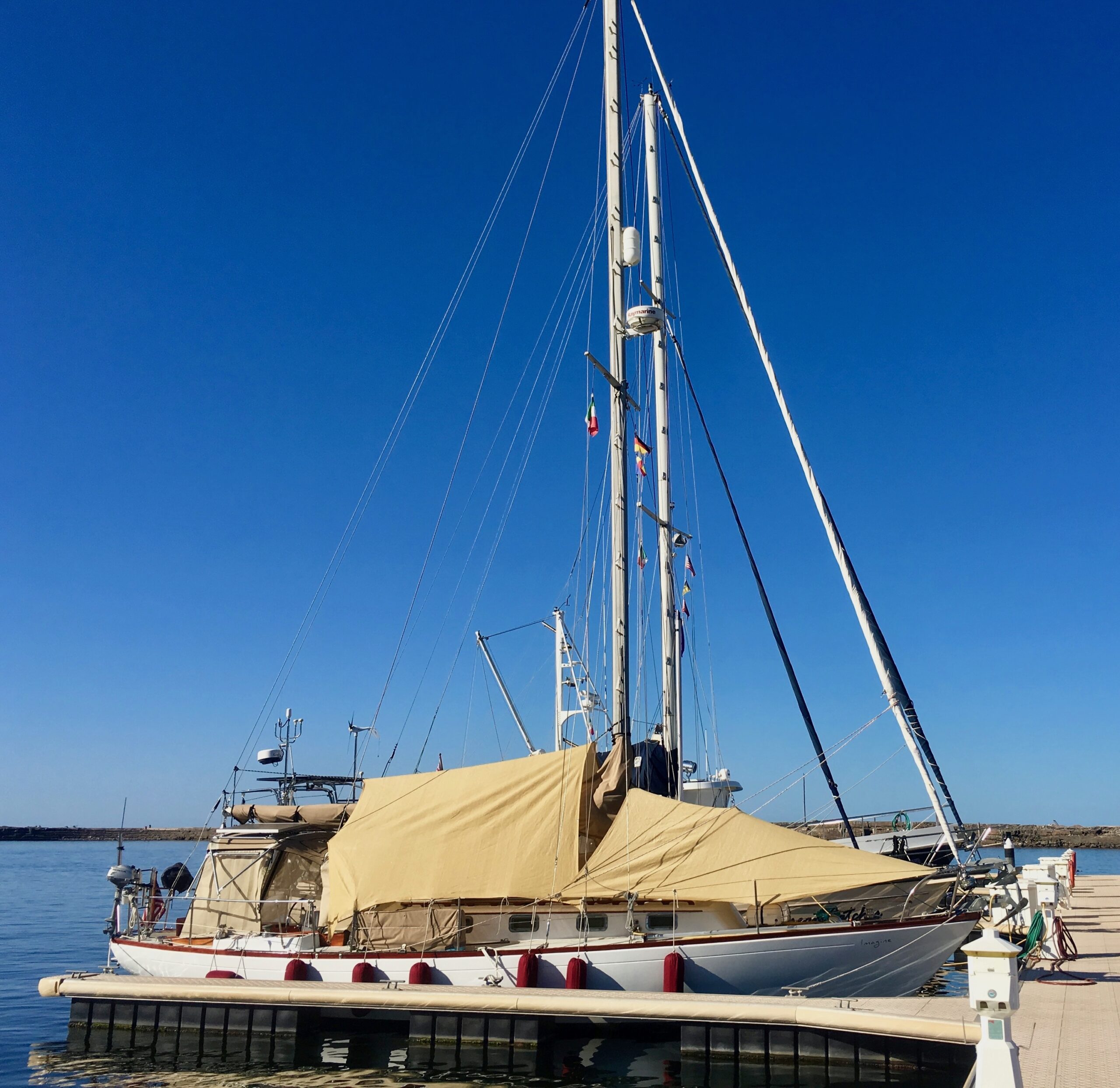

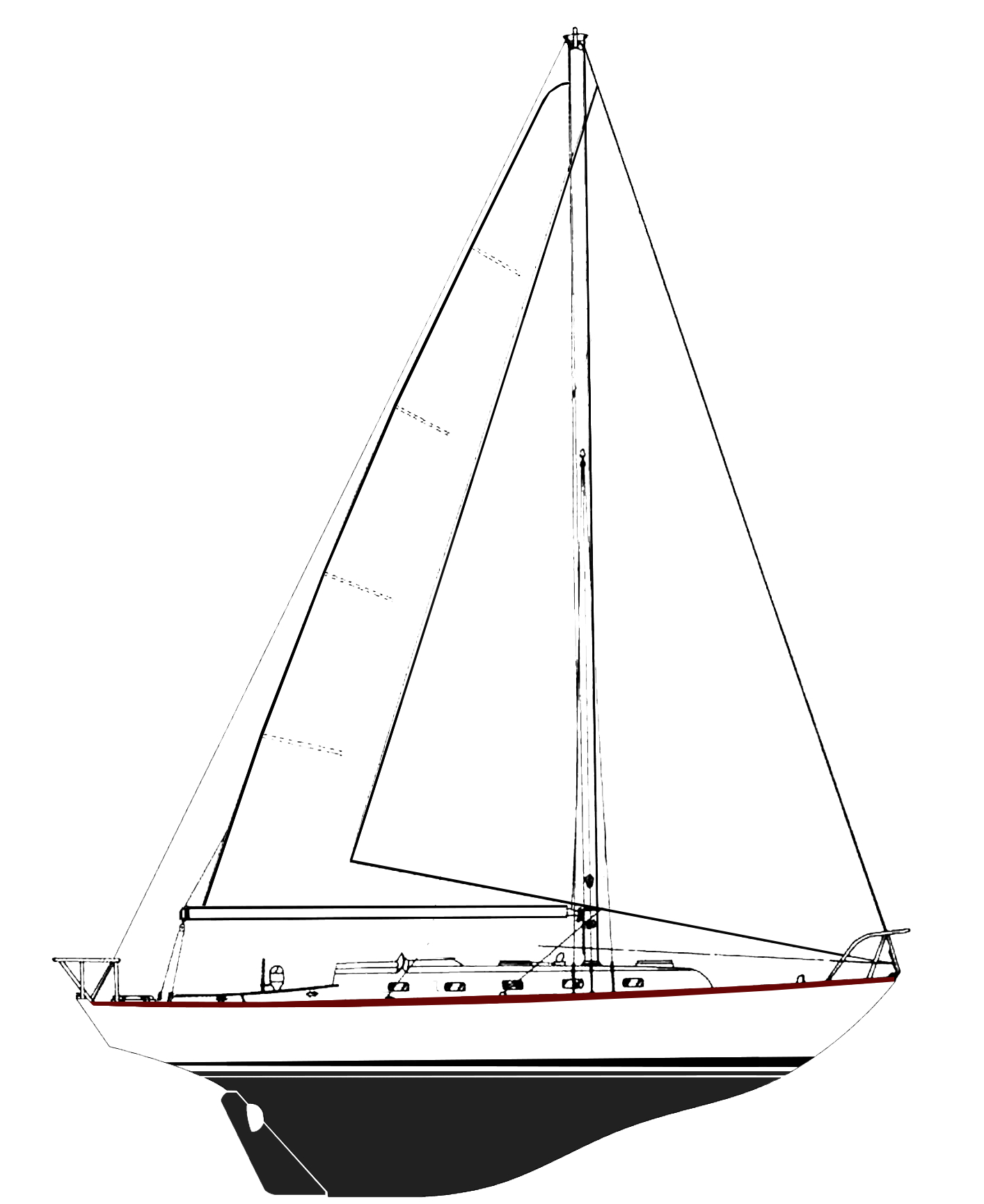

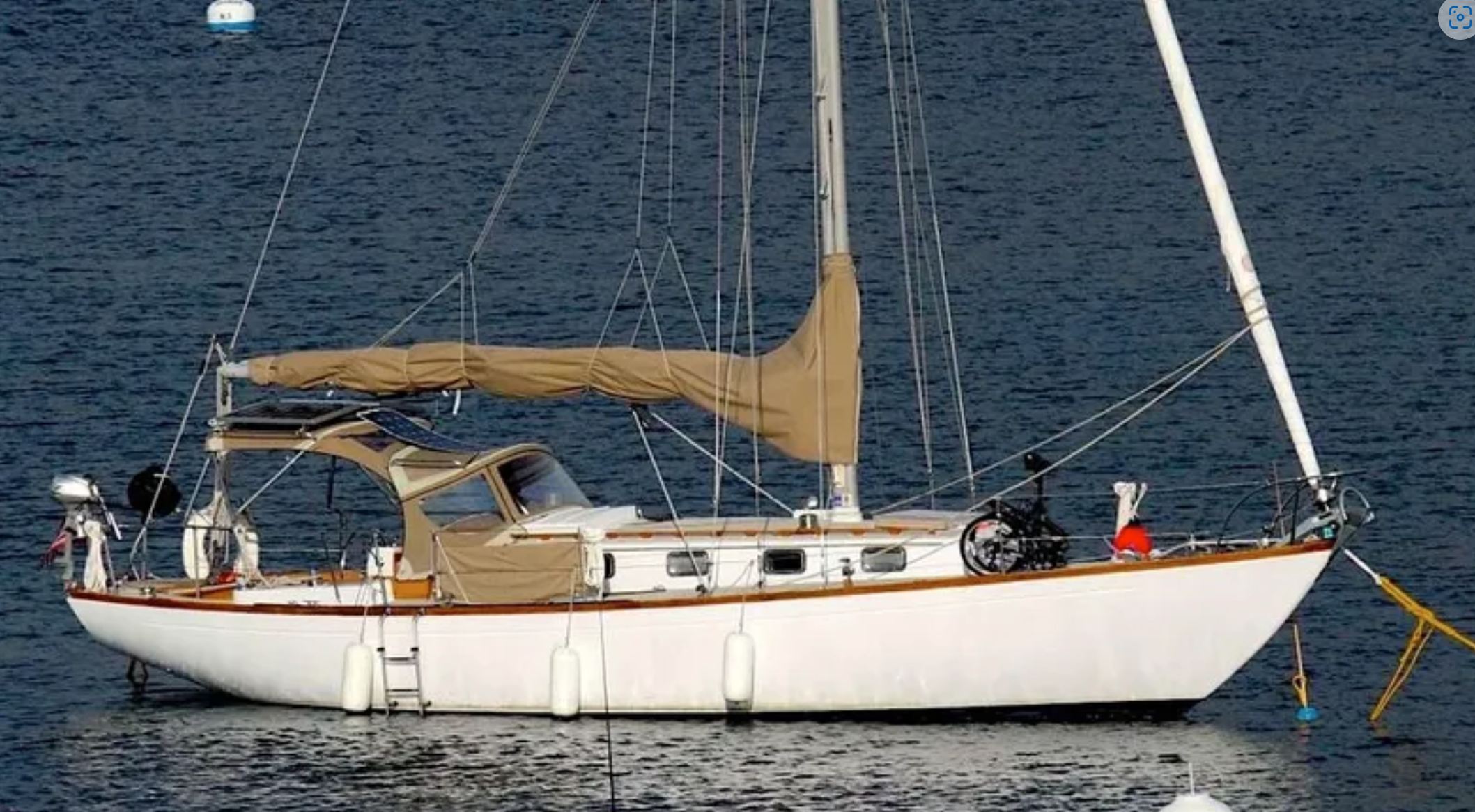

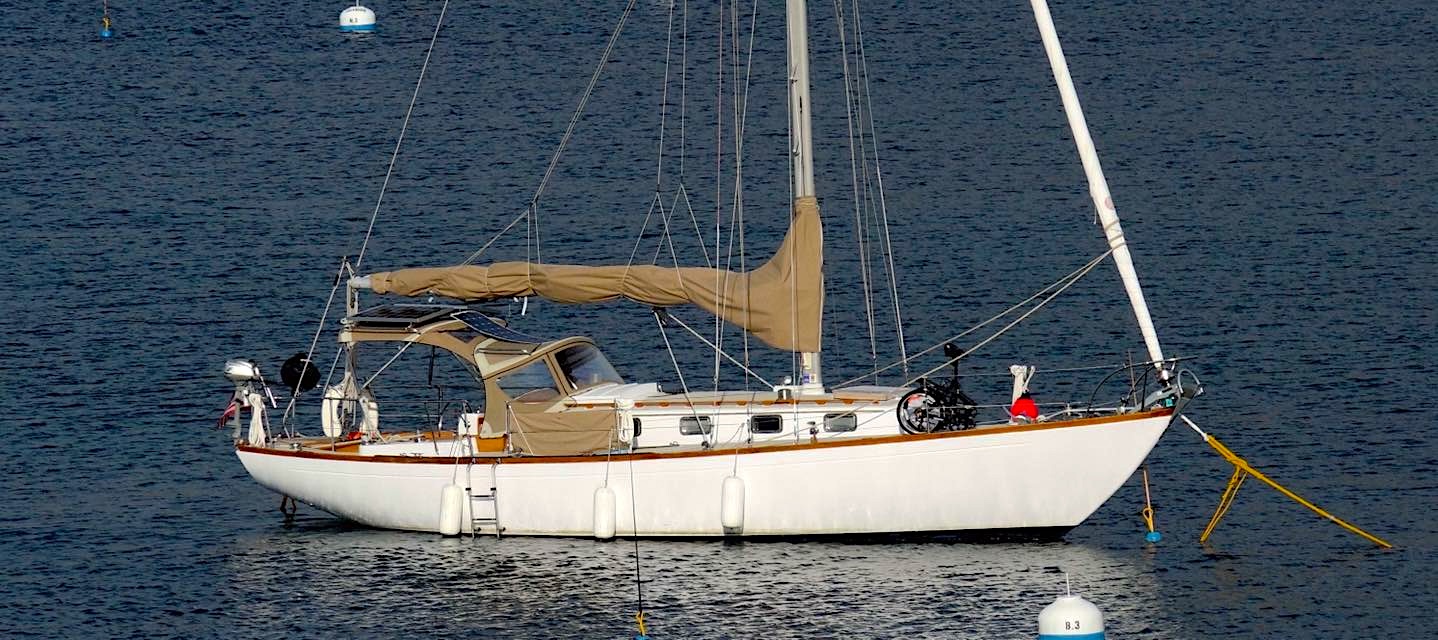

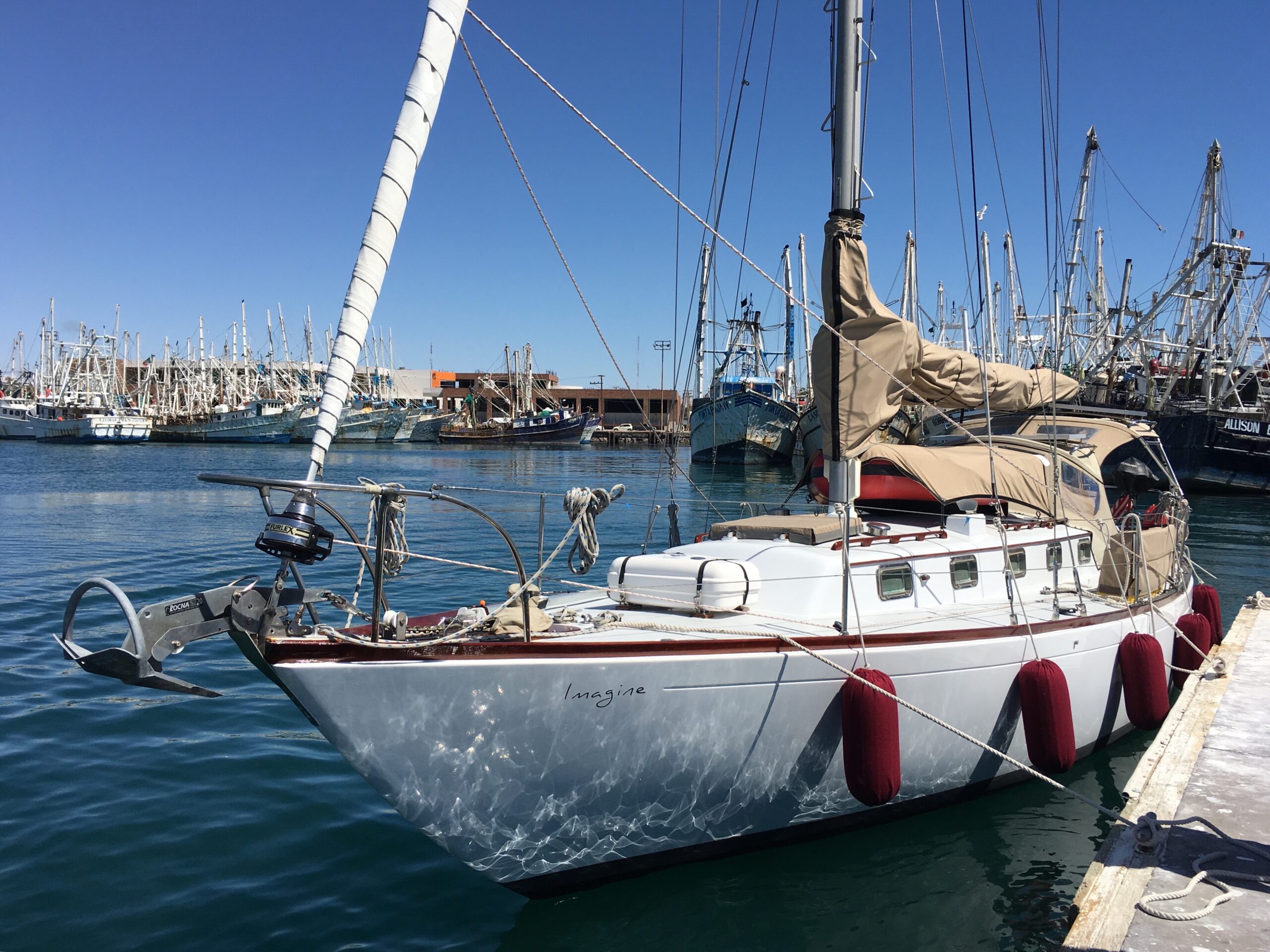

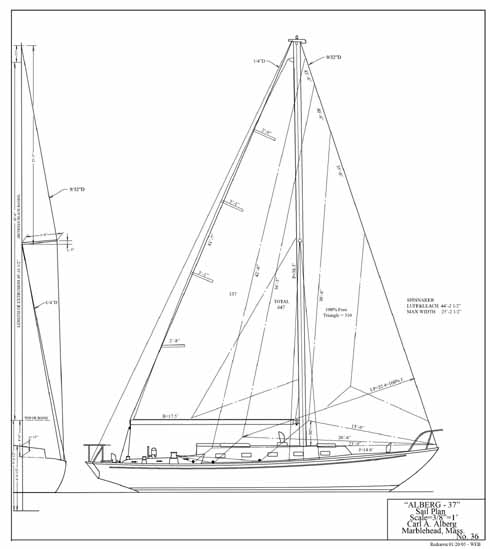

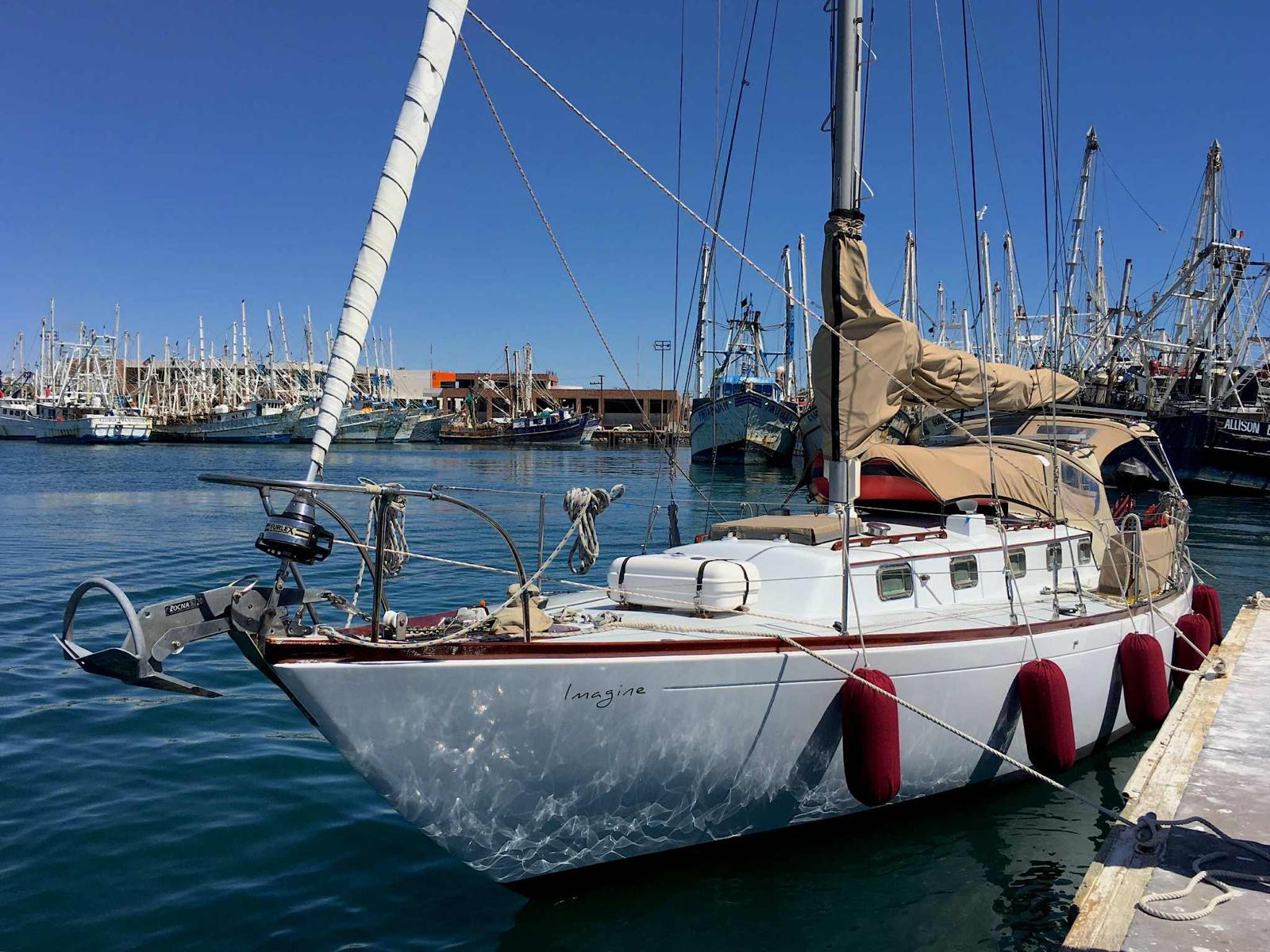

SV Imagine is a professionally refit example of the legendary design by Carl Alberg and built at Whitby Boat Works in Canada to high standard of construction and craftsmanship. This Cruise Ready boat is located at the Cruisers Favorite, Cabrales Boat Yard in Puerto Penasco, Sea of Cortez Mexico. The Cabrales Boat Yard is only 1hr South of the US Border or 3.5hrs South of the Pheonix, Arizona airport, making for a great cruise starting location for all the Sea of Cortez has to explore.
Cruise Ready Gear and Systems Highlights:
* 2012 Beta Marine 28Hp Diesel Engine
* 270W of Solar
* New Chainplates 2017 and Standing Rigging 2015
* 2016 Quantum Mainsail / 2014 135% Genoa
* 2014/15 Iverson Dodger and Bimini with Full Enclosure
* 12v DC 6GPH Watermaker
* 2016 Newfound Metal Portholes
* Cape Horn Self Steering Windvane
COMMUNICATIONS
Satellite communicator 2015 Iridium Go!
VHF 2015 Simrad RS35
VHF handset 2015 Simrad HS35
VHF handset 2015 Standard Horizon HX870
AIS Transceiver 2016 Si-Tex Metadata Class B
NAVIGATION + INSTRUMENTS

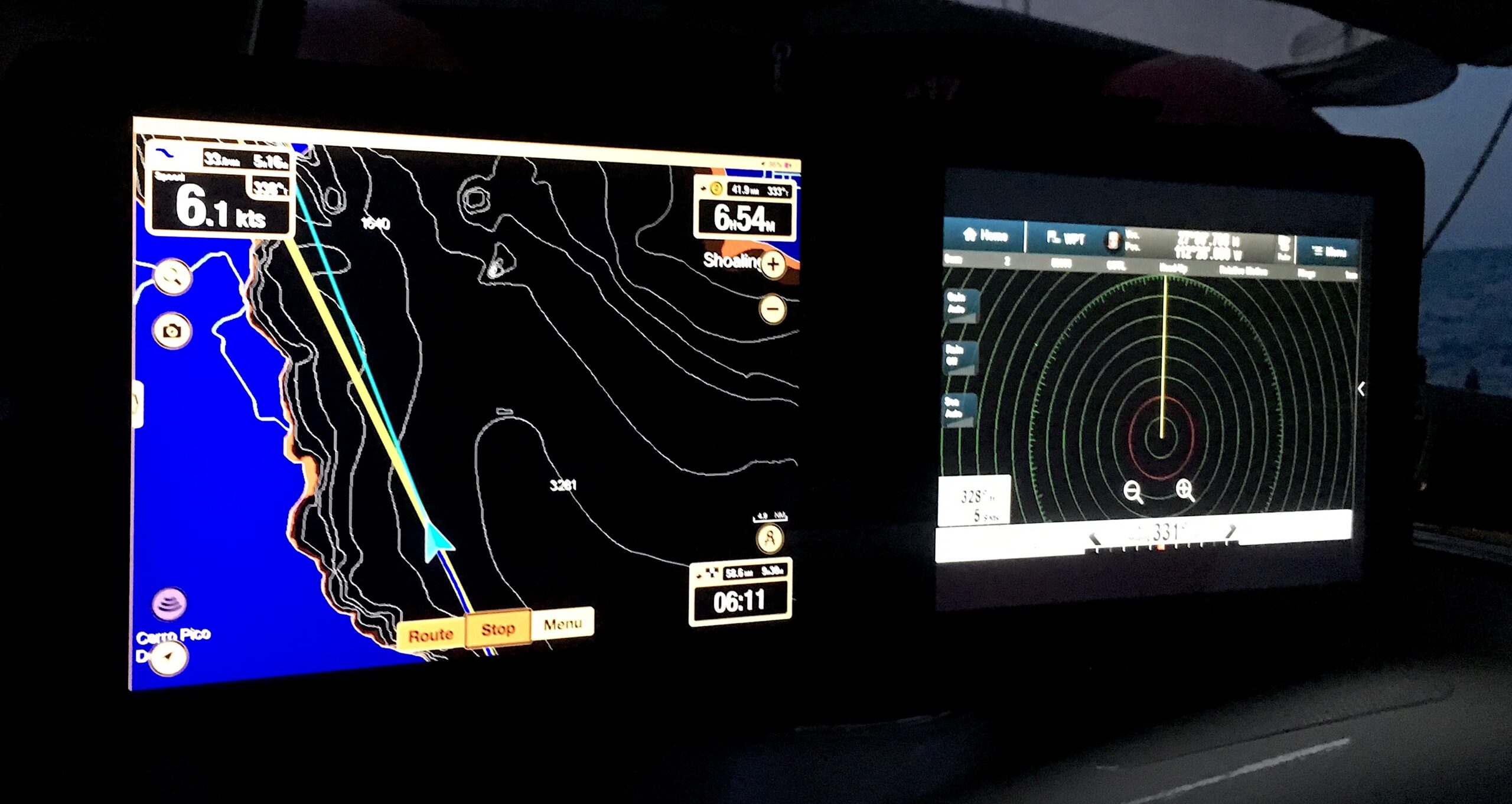

Chart plotter 2015 Raymarine A95 9″ MFD WIFI E70232.
Radar 2015 Raymarine 18″ HD Digital Radome

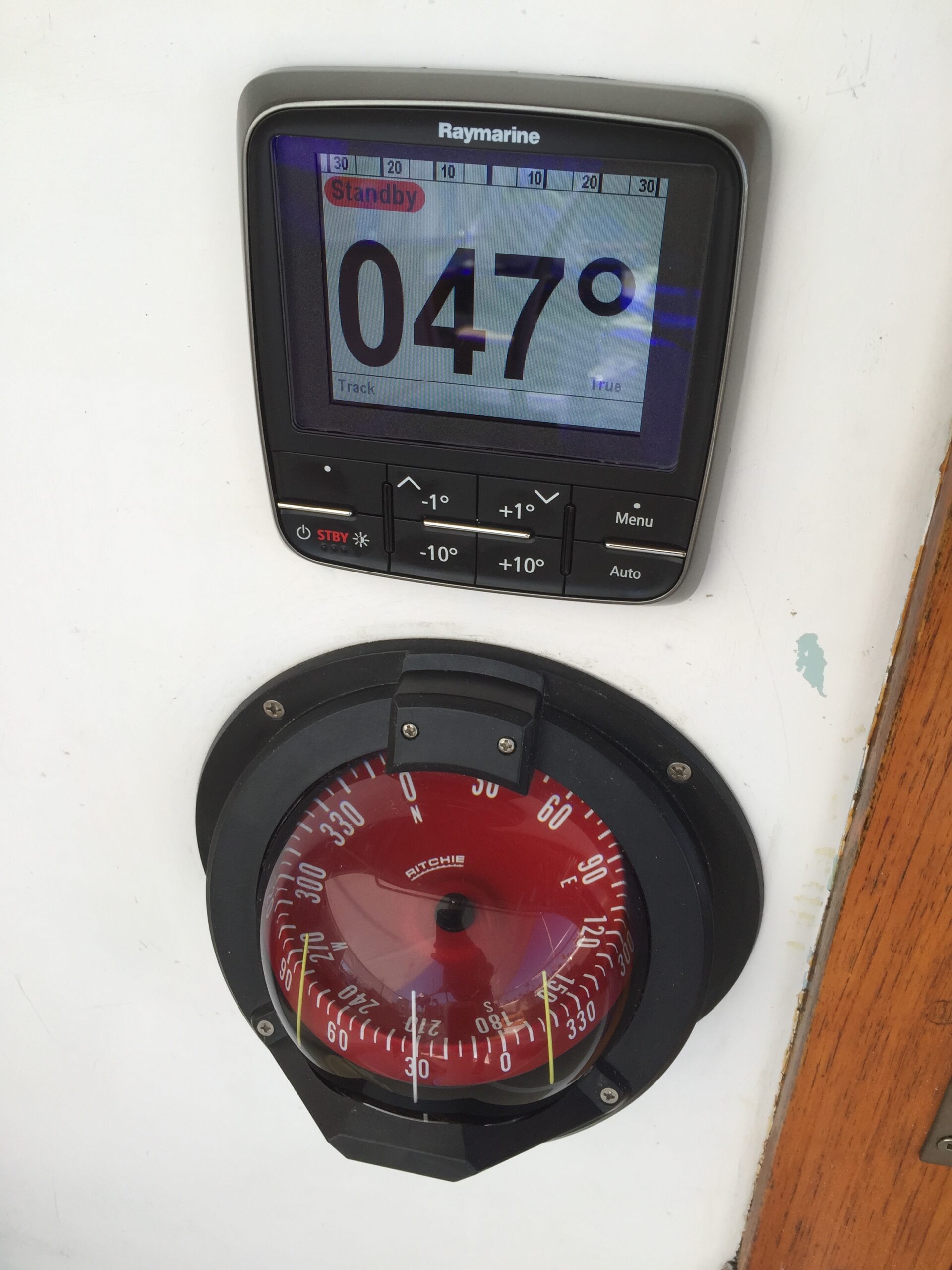

Autopilot Instrument 2015 Raymarine P70 Color A/P Head: Sail E22166
Autopilot Pump 2015 Raymarine RayPilot Type1 12 V Pump M81120
Autopilot Sensor Core 2015 Raymarine Evolution EV1 Sensor Core E70096
Autopilot Controller 2015 Raymarine ACU-200 E70099

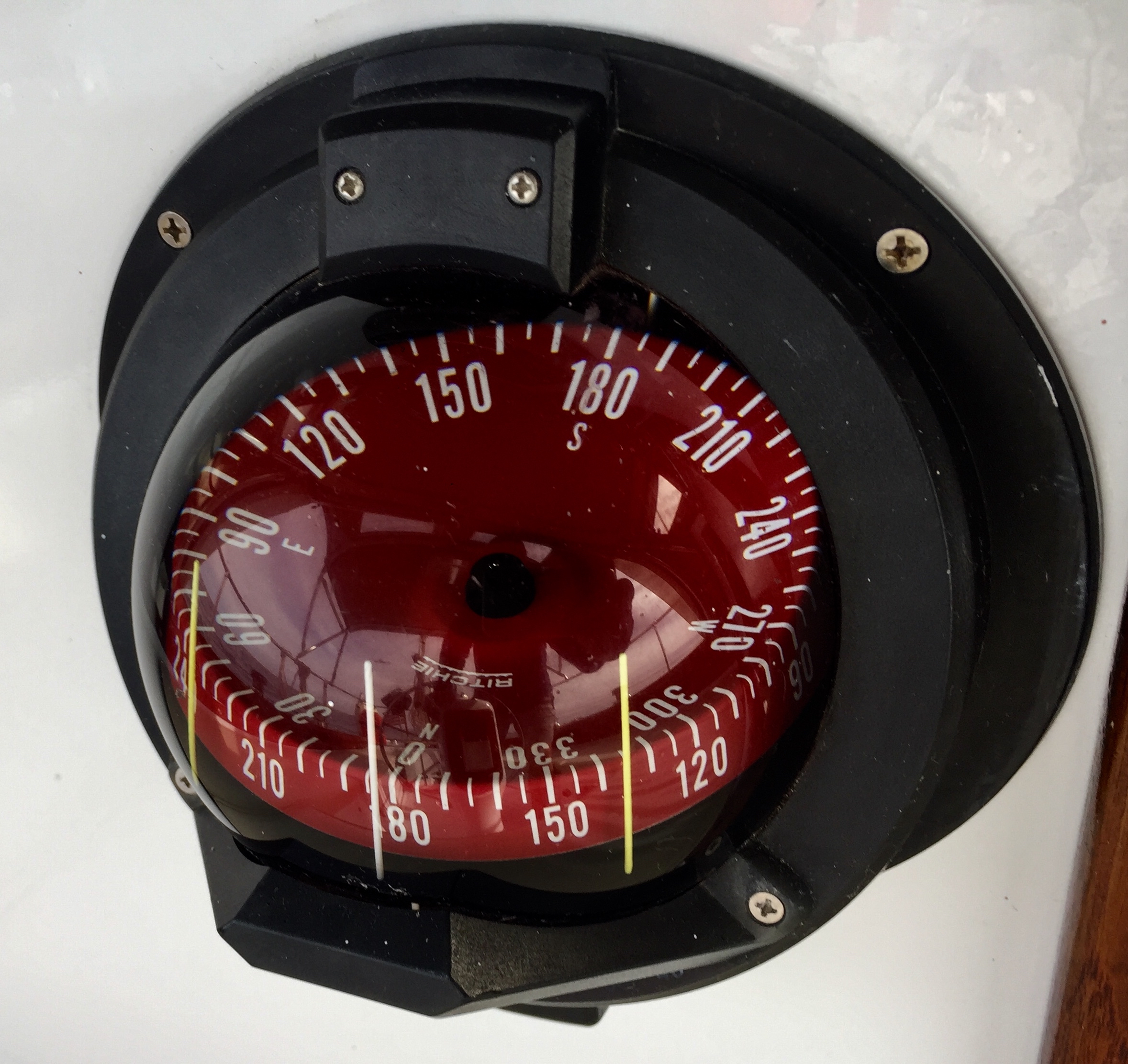

Compass 2010 Ritchie Navigator BN-232
Speed Instrument 2010 Raymarine ST60
Depth Sounder 2010 Raymarine ST60 through hull
Depth Sounder 2016 HawkEye H22PX
Steering

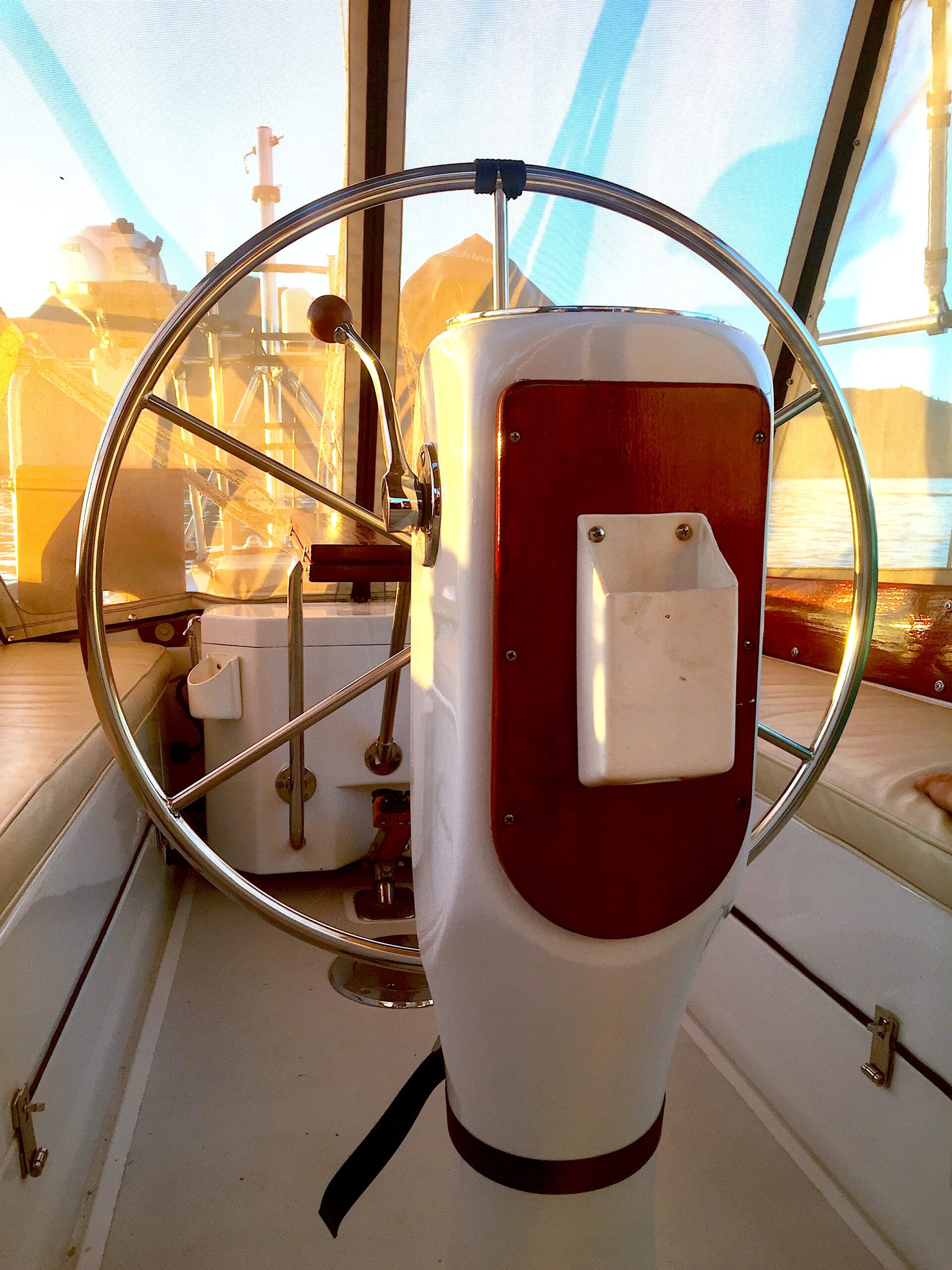

2012 Hydraulic steering / wheel on a steering column
ENGINES

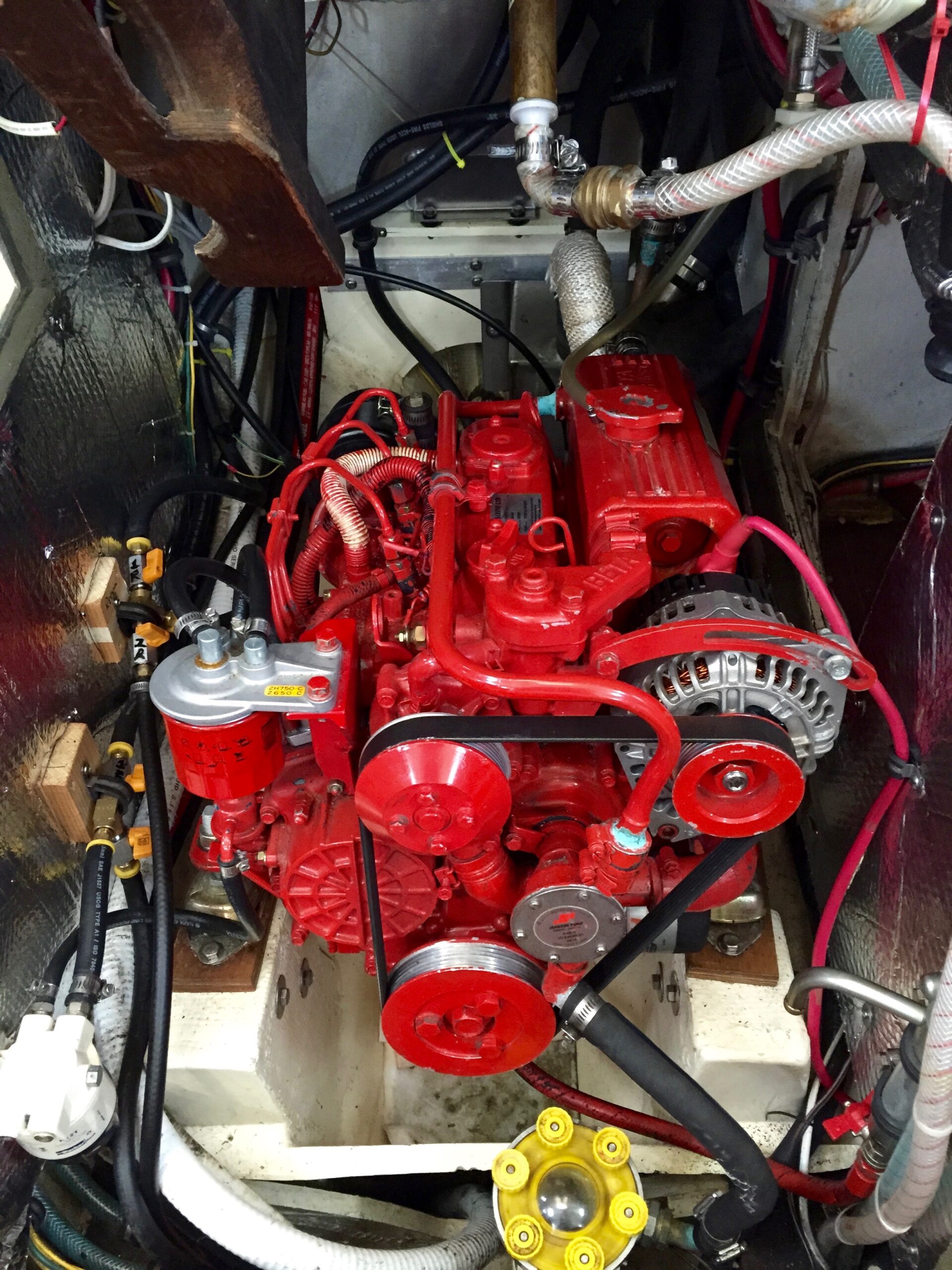

Diesel Engine 2012 Beta Marine/Kubota 28 HP BD1005EPA
Fuel consumption 0.75 gallon of diesel per hour
Engine Cooling Sea water
Steering 2009 Hydraulic wheel steering
Emergency Steering Tiller steering
Drive Shaft

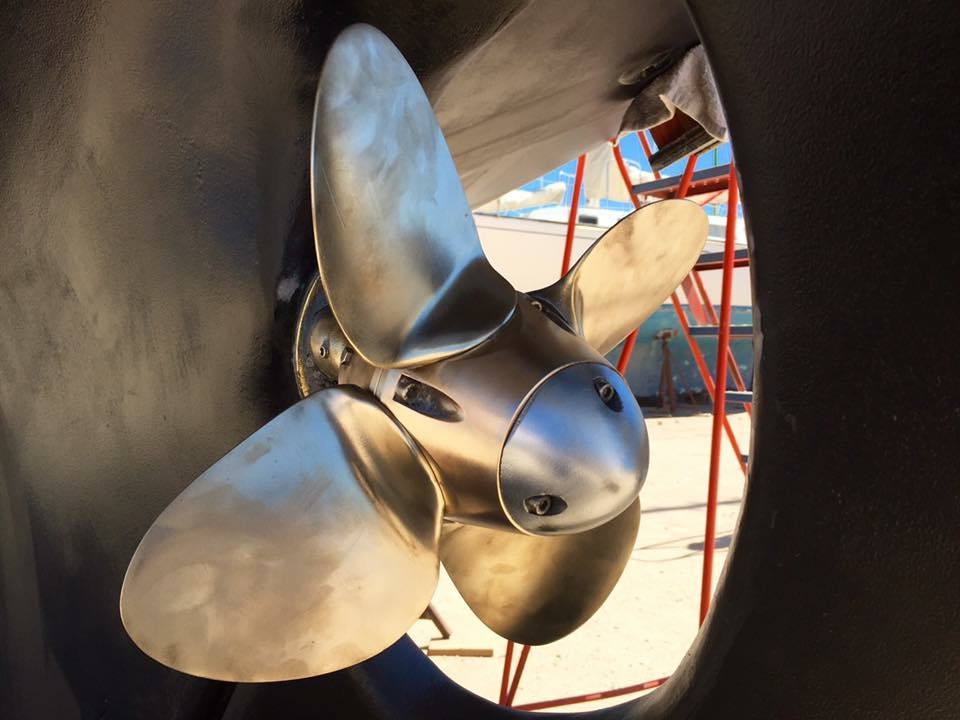

Propellor Variprop DF-107 3 blade feathering prop
Cruising speed Aprox. 6.5 Knots
Generator 2016 Yamaha 2000
Outboard Motor 2010 Honda BF2D, 2.2 HP
SOLAR

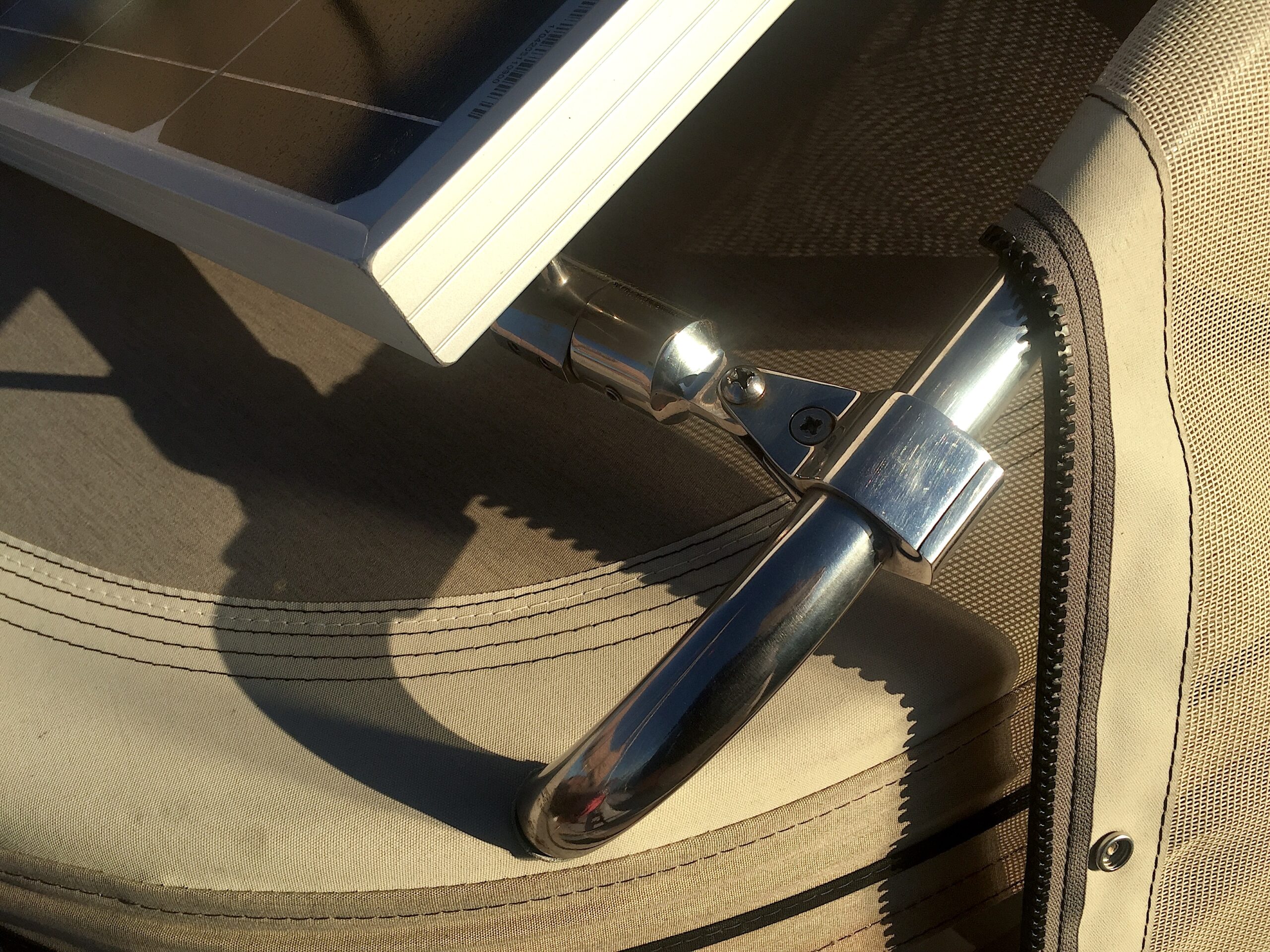

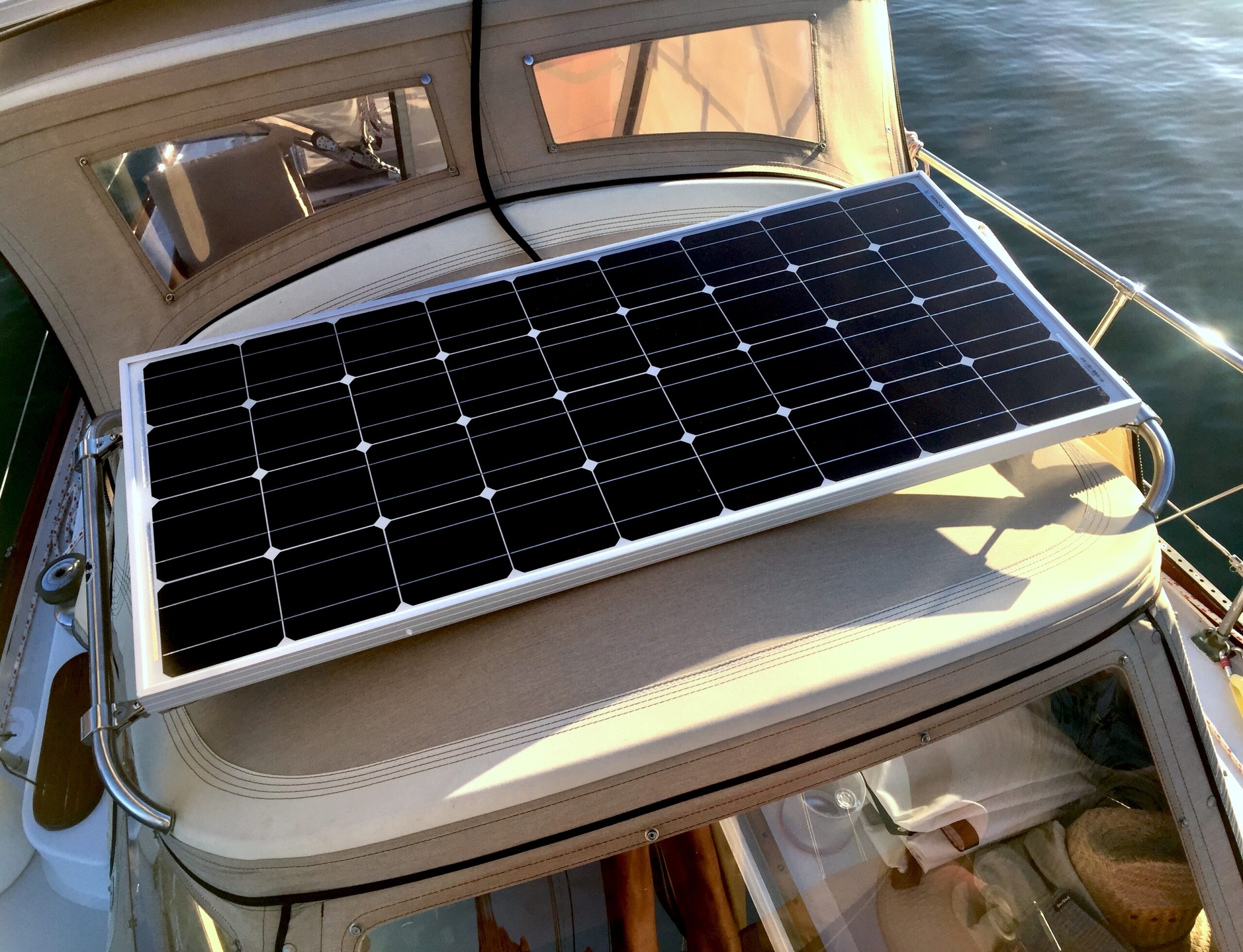

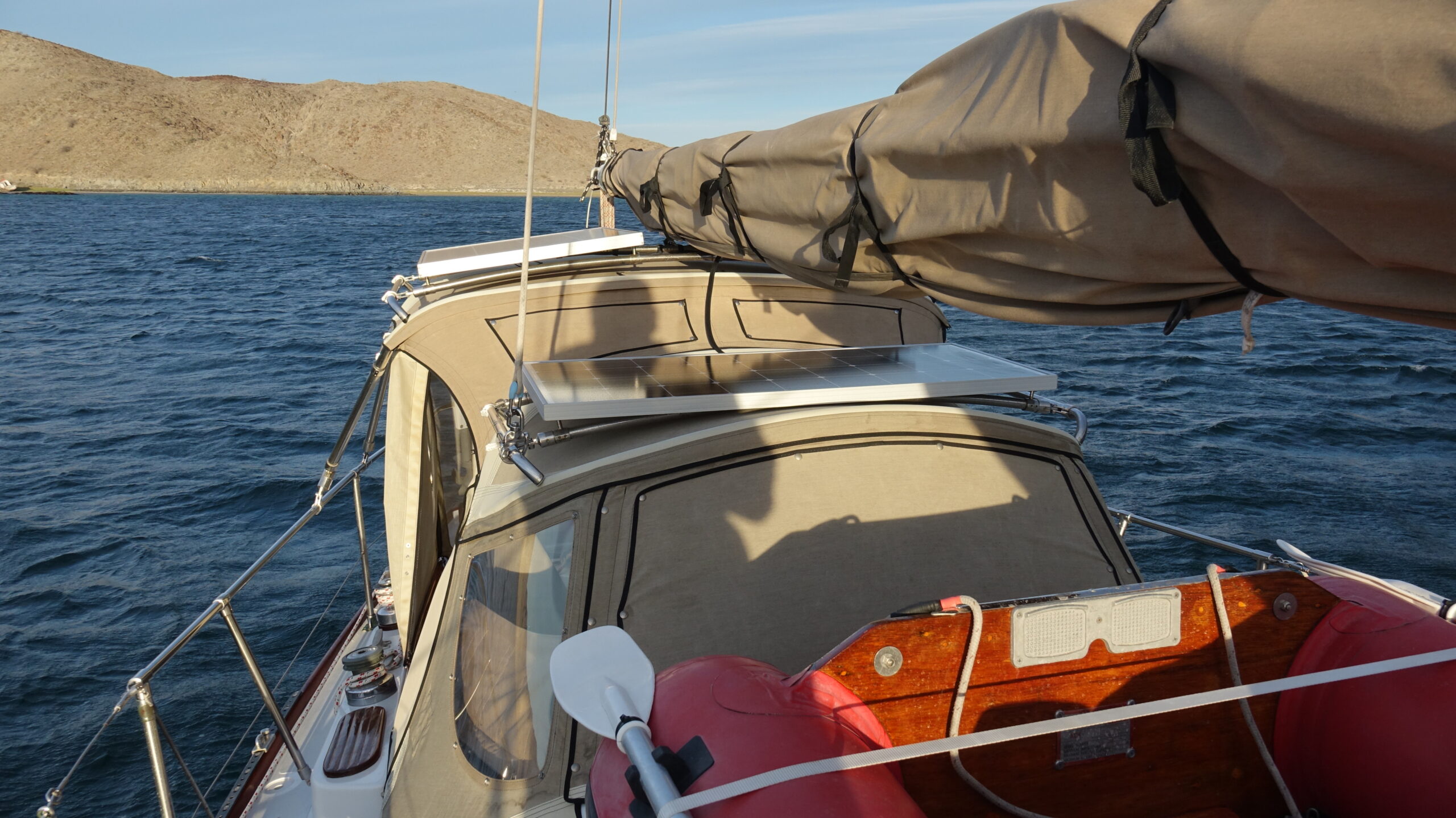

Solar Panels 2 x Kyocera 85 Watts, 1 x Kyocera 100 Watts
Battery Monitor 2016 Clipper BM1

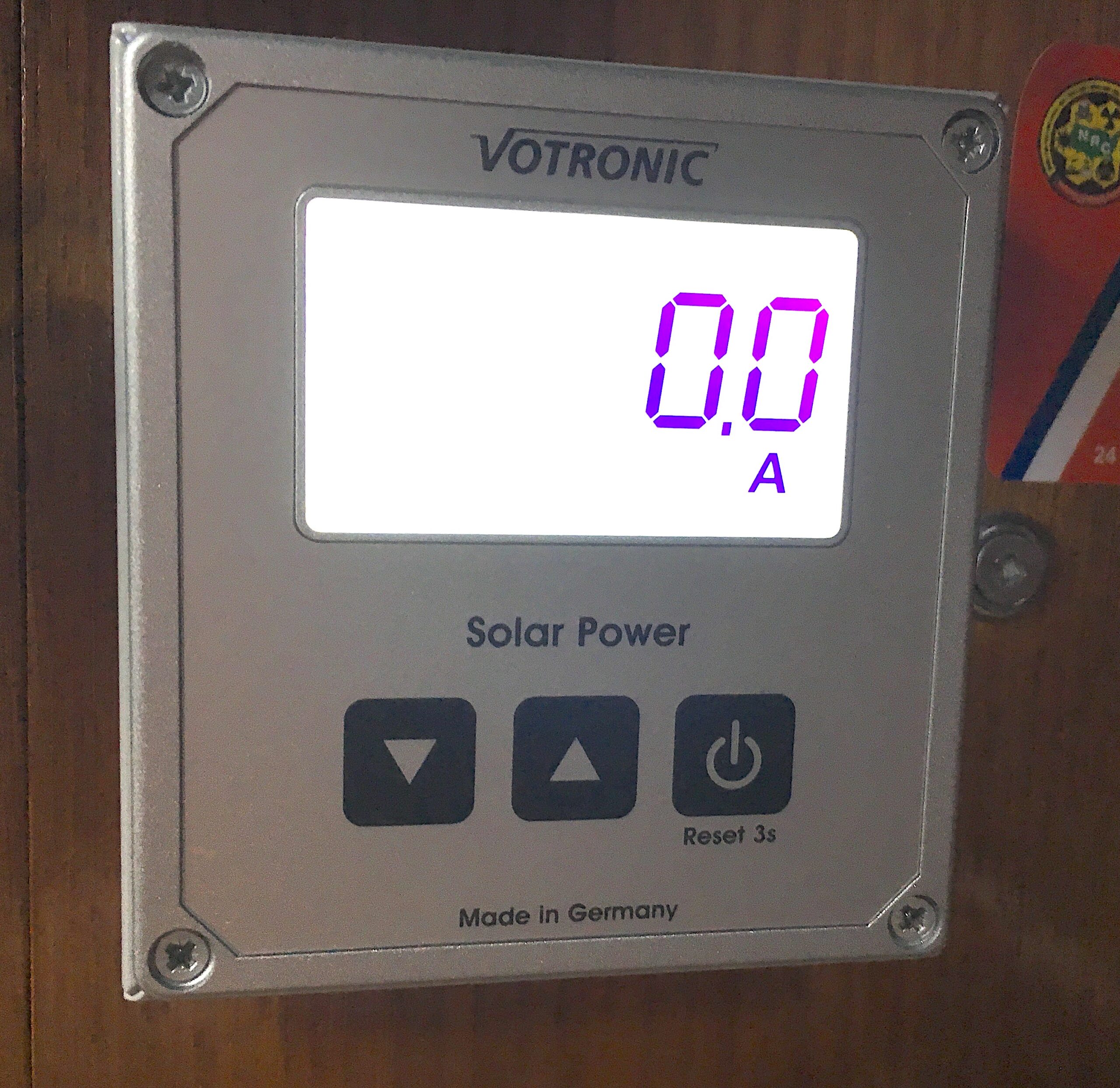

Battery Charging Display for the Solar Charger 2018 Votronic LCD Solar Computer S
Solar Panel Charge Controller Regulator 2018 MPP Duo Digital 430 for 2 batteries Votronic Battery Temperature Sensor
Digital Solar Panel Meter 2016 RemoteMeter RM-1
Power Inverter 2016 Power Bright PW 2300-12

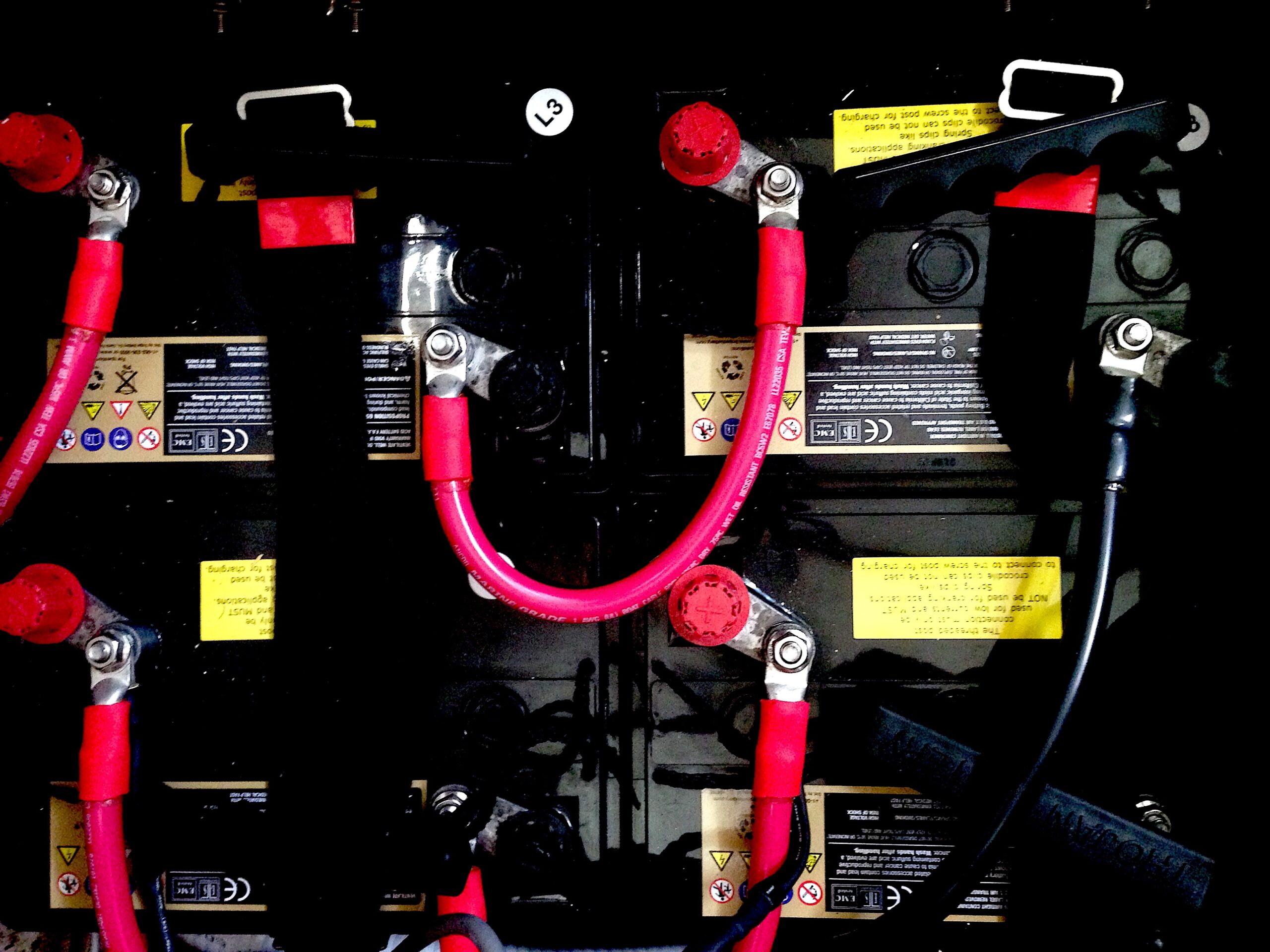

Battery Bank 2012 4 x 6 Volt AMG house bank batteries house
Battery 2012 1 x 12v engine starter battery
SAFETY

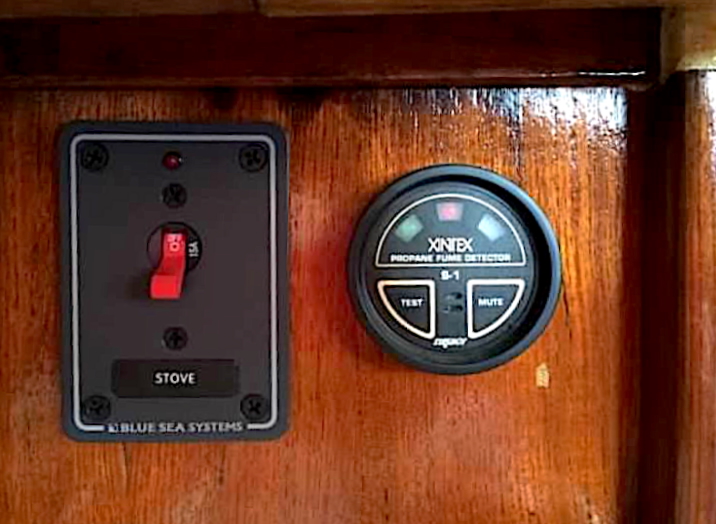

Carbon Monoxide Alarm 2016 Xintex Fire boy
GPS Epirp vessel 2016 ACR RLB-36 CAT II
GPS Epirp personal 2016 2 x ACR PLB-375
Life Vests 2015 West Marine Offshore
Jack Lines Bow to cockpit/ starboard and port side
Dinghy/Tender 1990 Achilles LS-2, 8.5′
Emergency Tiller

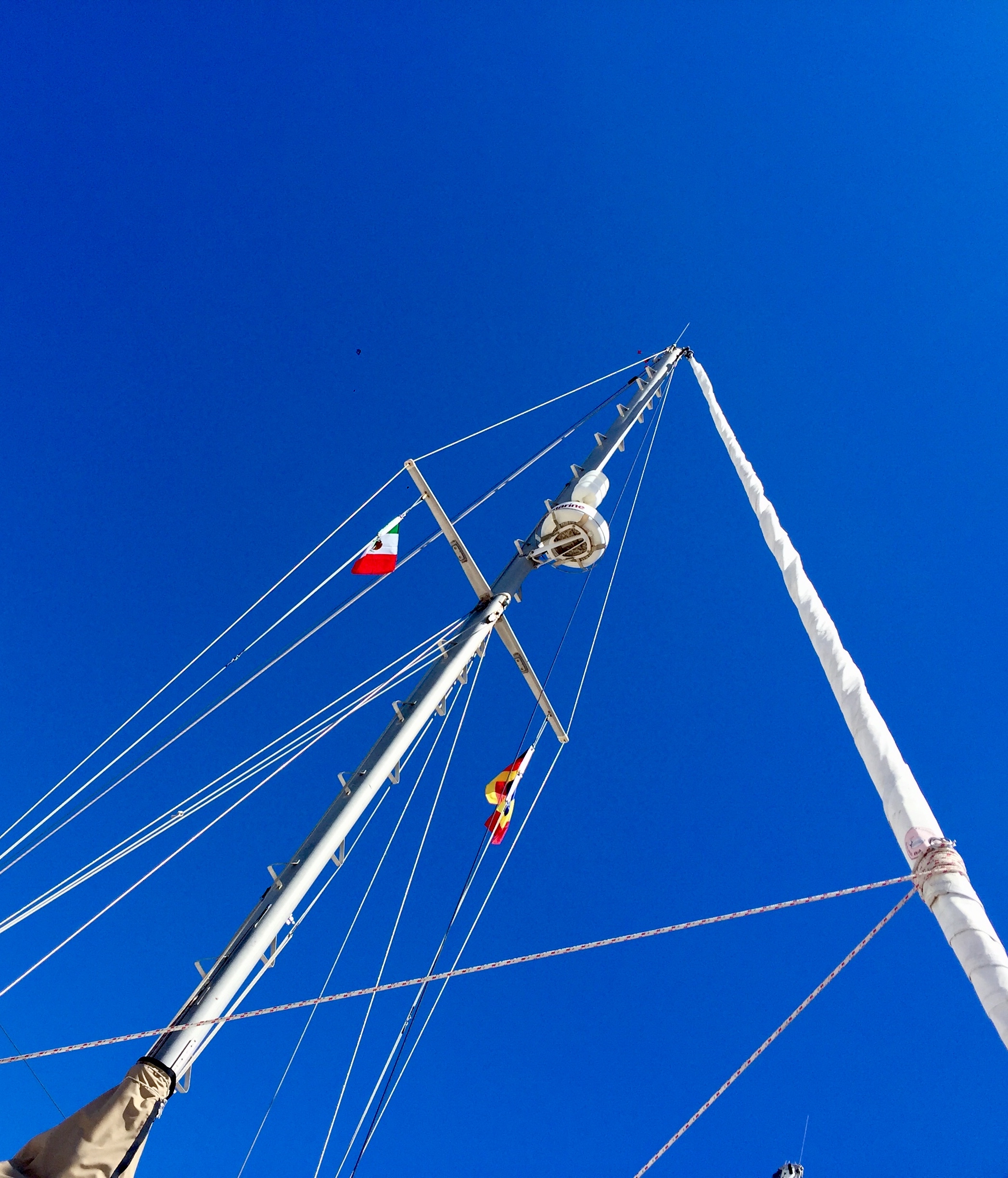

RIGGING

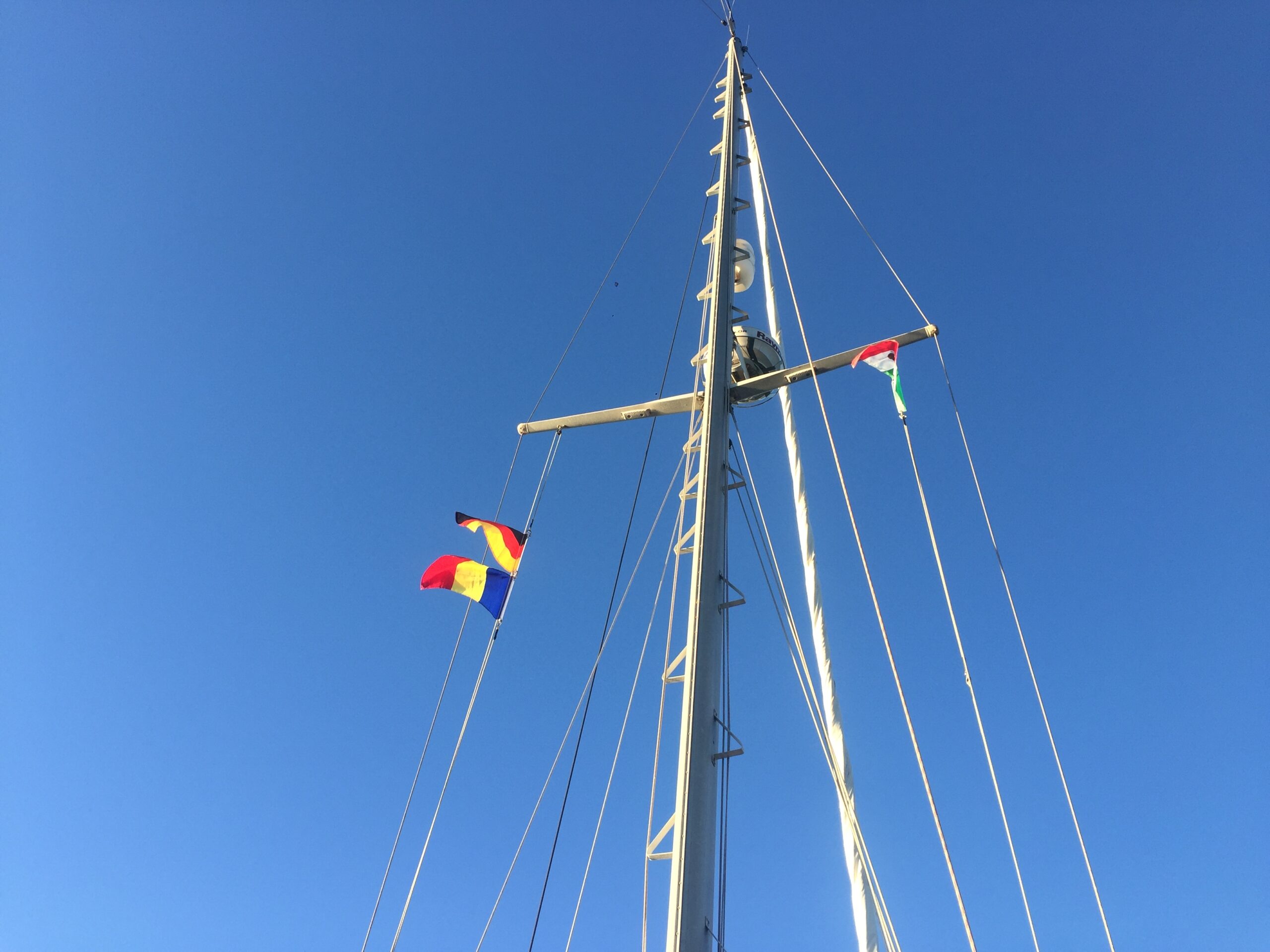

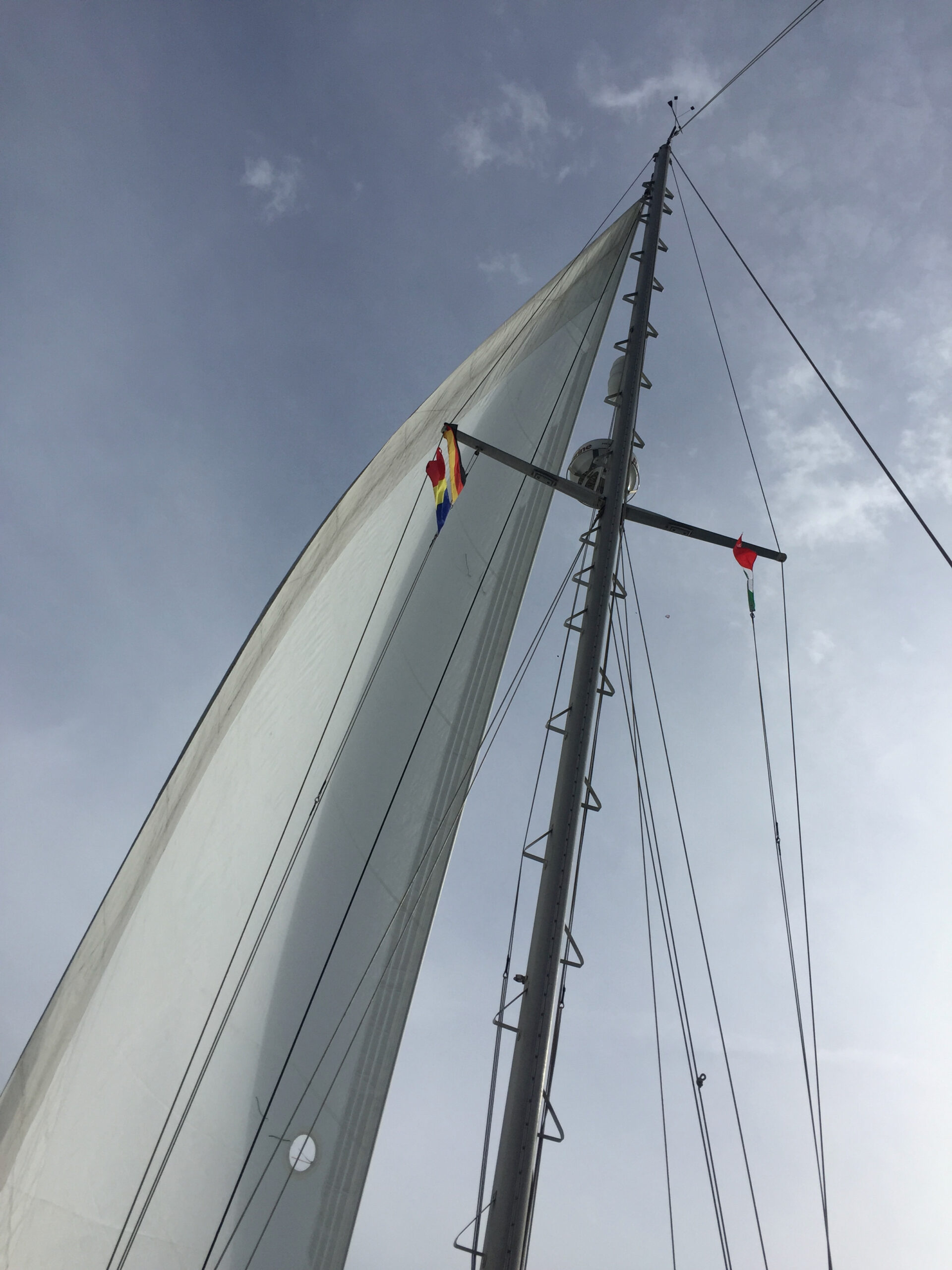

Standing Rigging 2015
Running Rigging 2015
Life-lines 2015
Chainplates 2017 316 Stainless
GROUND TACKLE
Main Anchor 2015 Rocna 20 | 40 lbs/20 kg with 267 feet of 5/16″ G4 chain + 110 feet 3/4″ rode
Storm Anchor 2008 Fortress FX-37 with 45 feet 5/16″ G4 chain + 100 feet 3/4″ rode
Stern Anchor 2015 Fortress FX- 11 with 25′ 5/16 G4 chain + 50′ 3/4″ rode

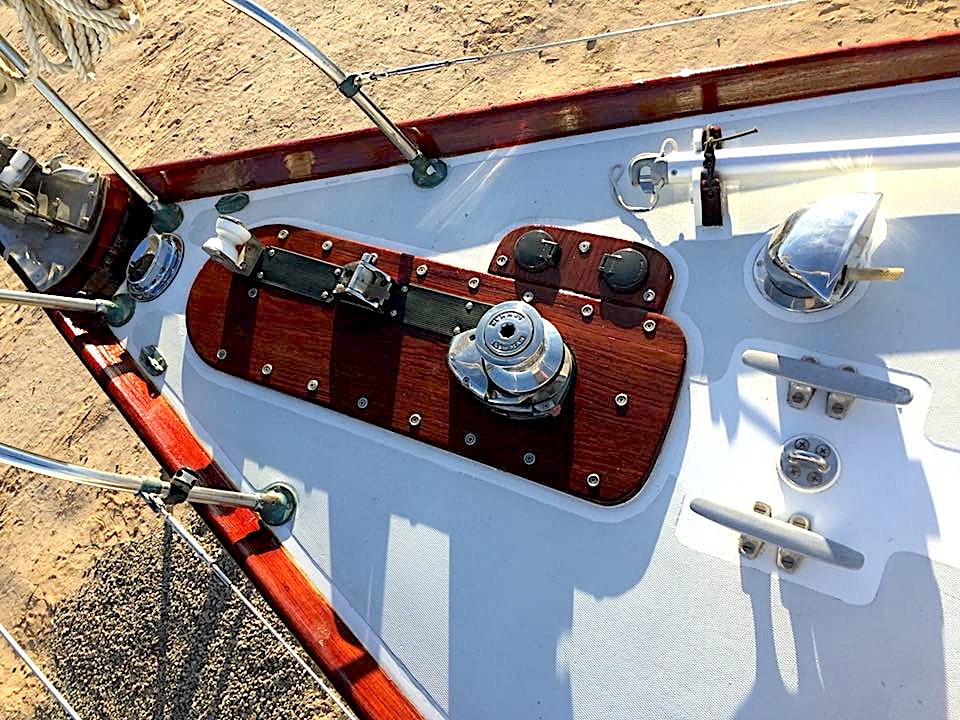

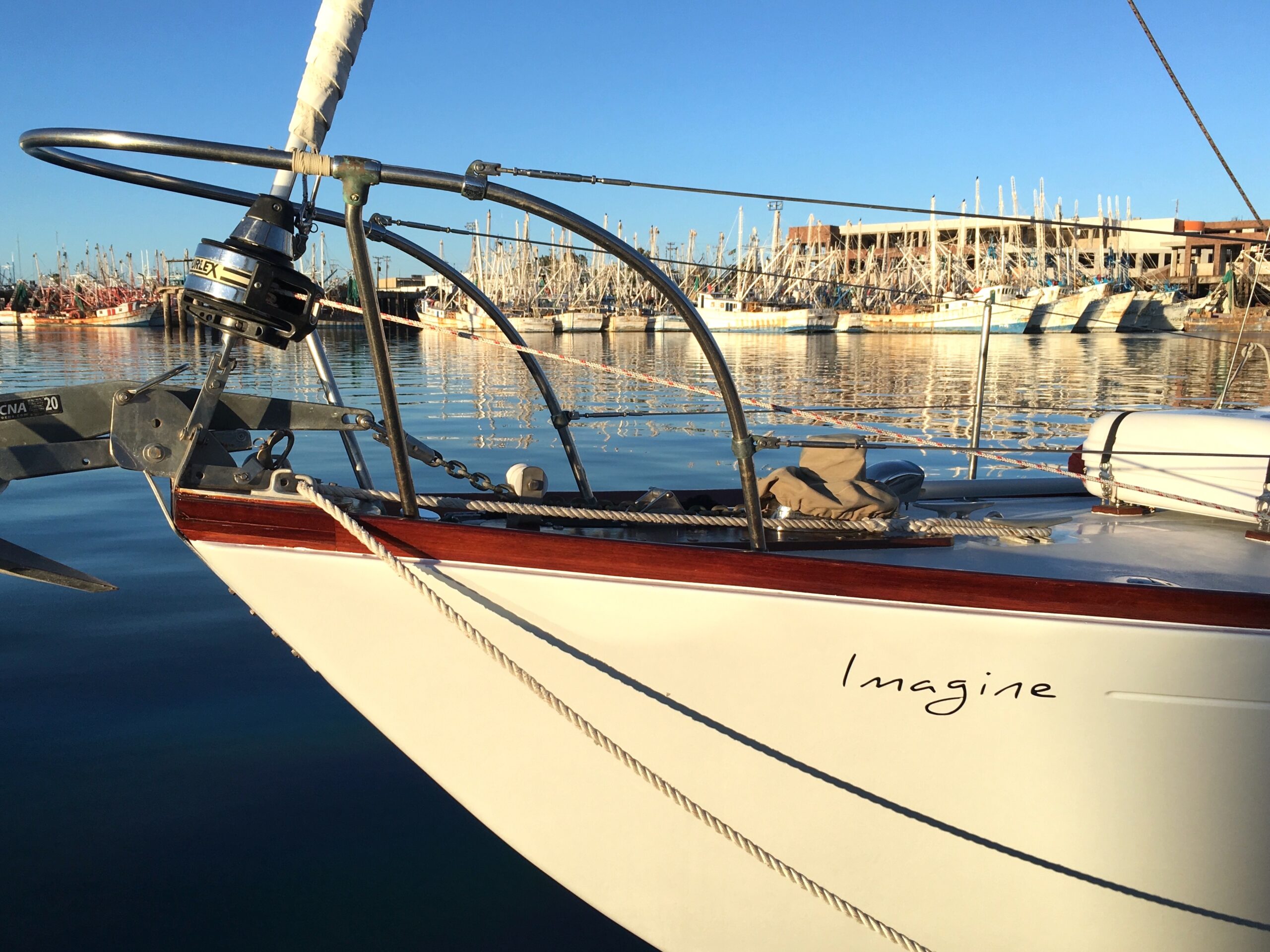

Windlass 2016 Lewmar V2
Anchor Chain Stopper 2016 Lewmar 5/16″
Anchor snubber Sea-Dog Chain Gripper Plate 2017

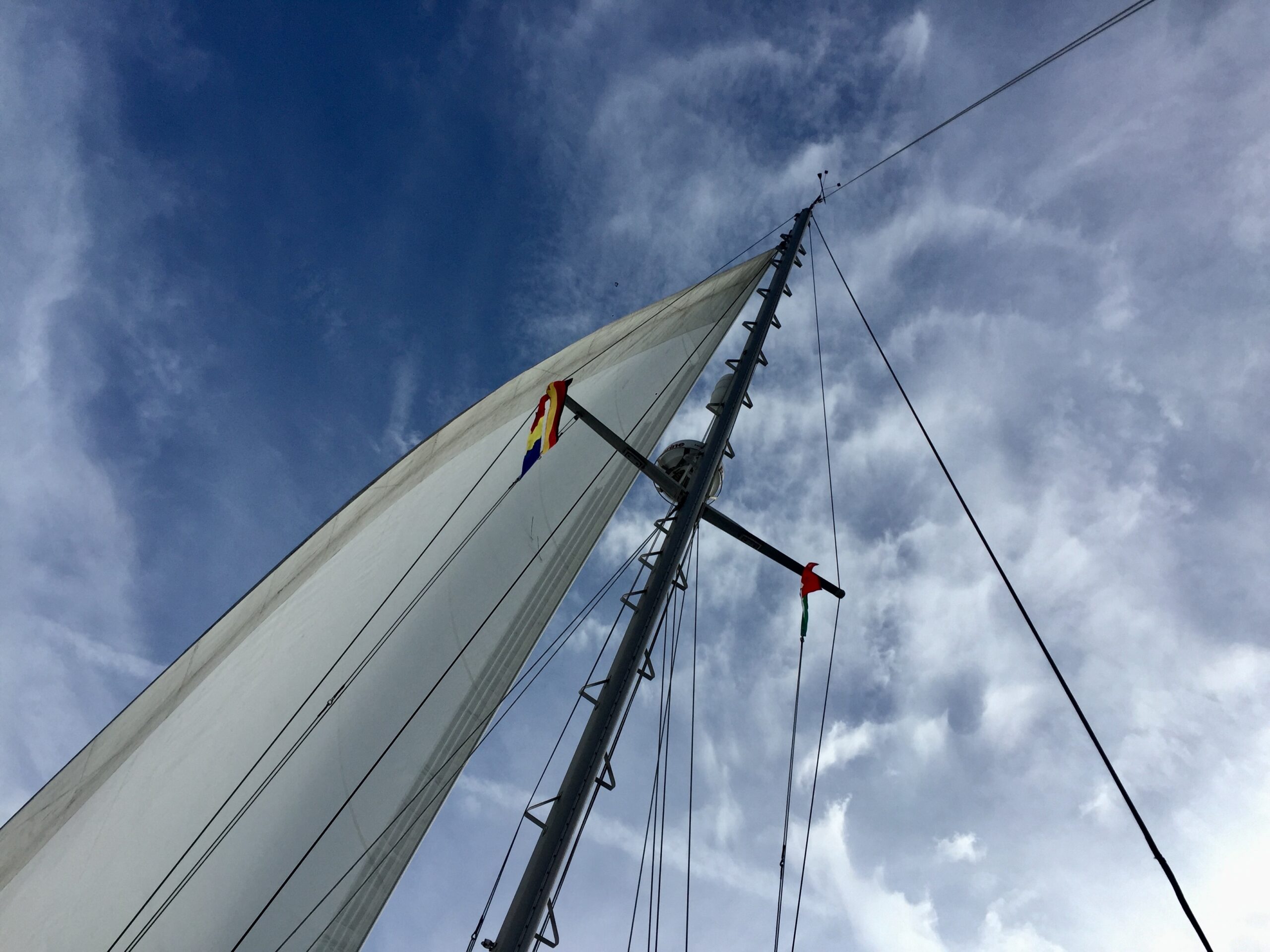

SAILS

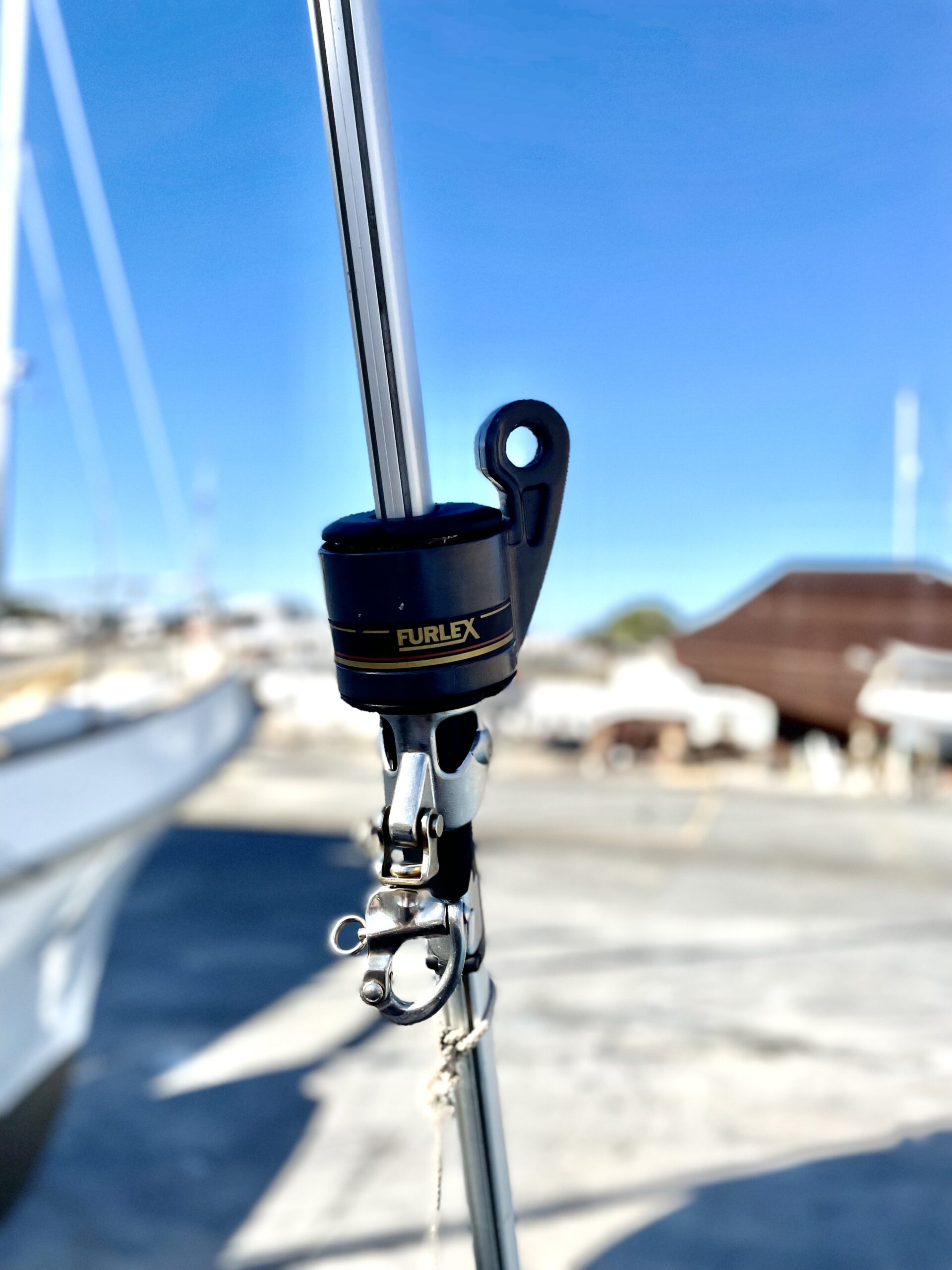

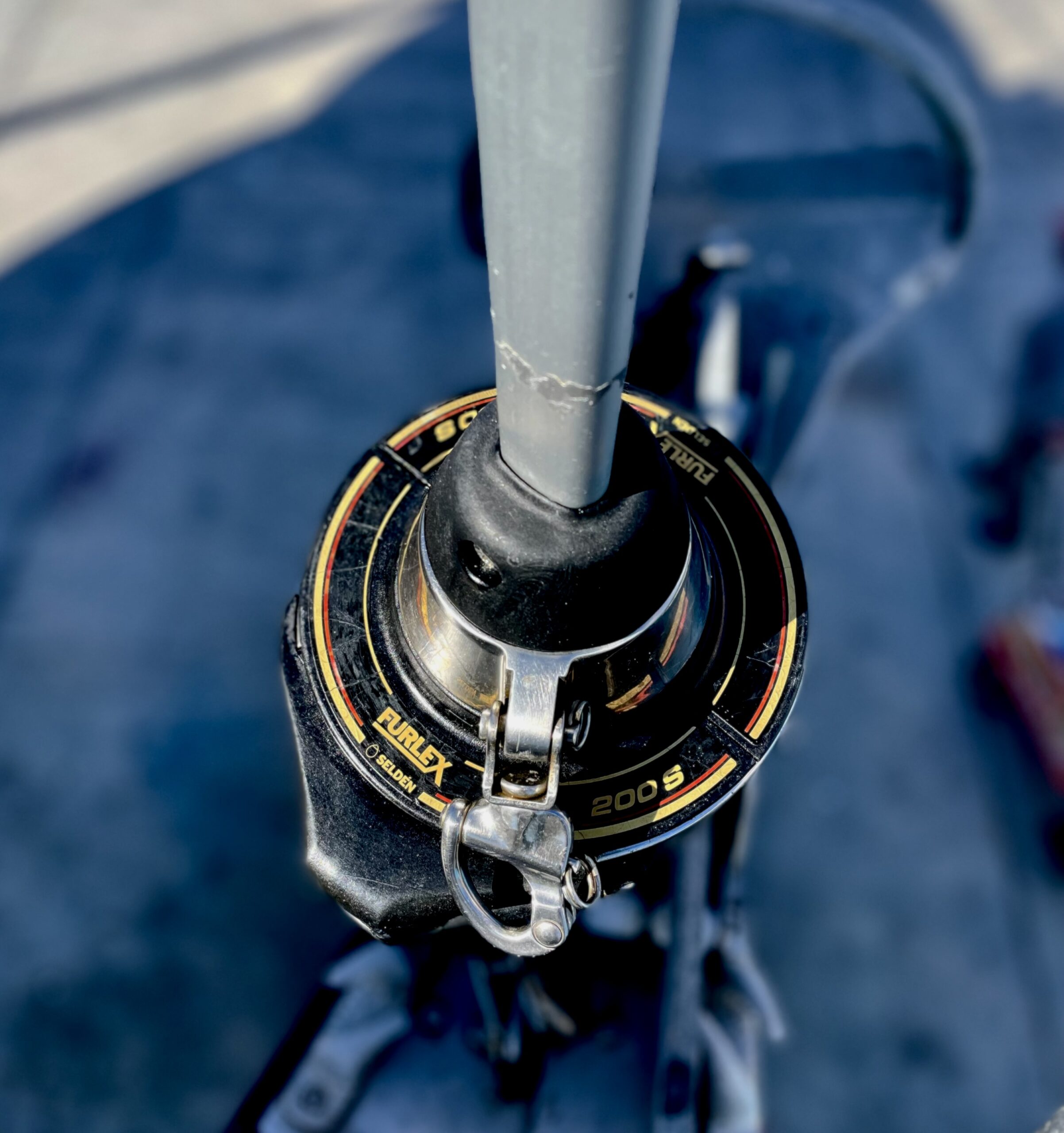

Headsail Furler 2012 Furlex 200s
Mainsail 2016 Quantum, loose footed, 3 reef points
Genoa 2014 135%
Jibs Two, older, perfect condition
Spinnaker Balloon Sail instead,
Storm Sail 2016 Gail Sail, slips over furled head sail
COCKPIT SHELTER

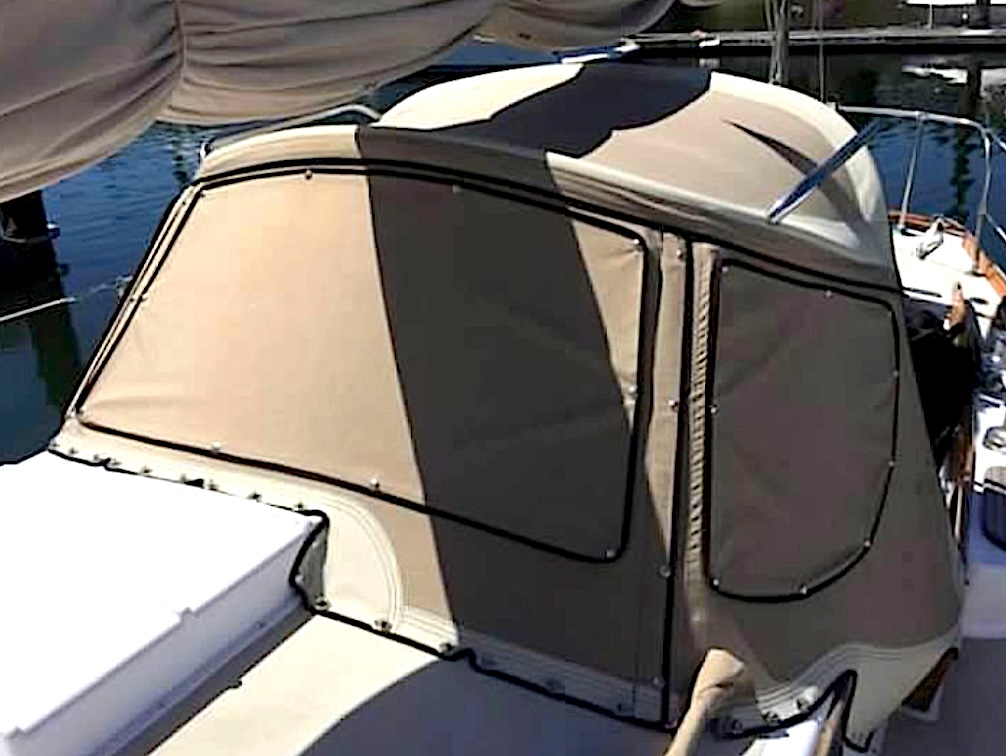

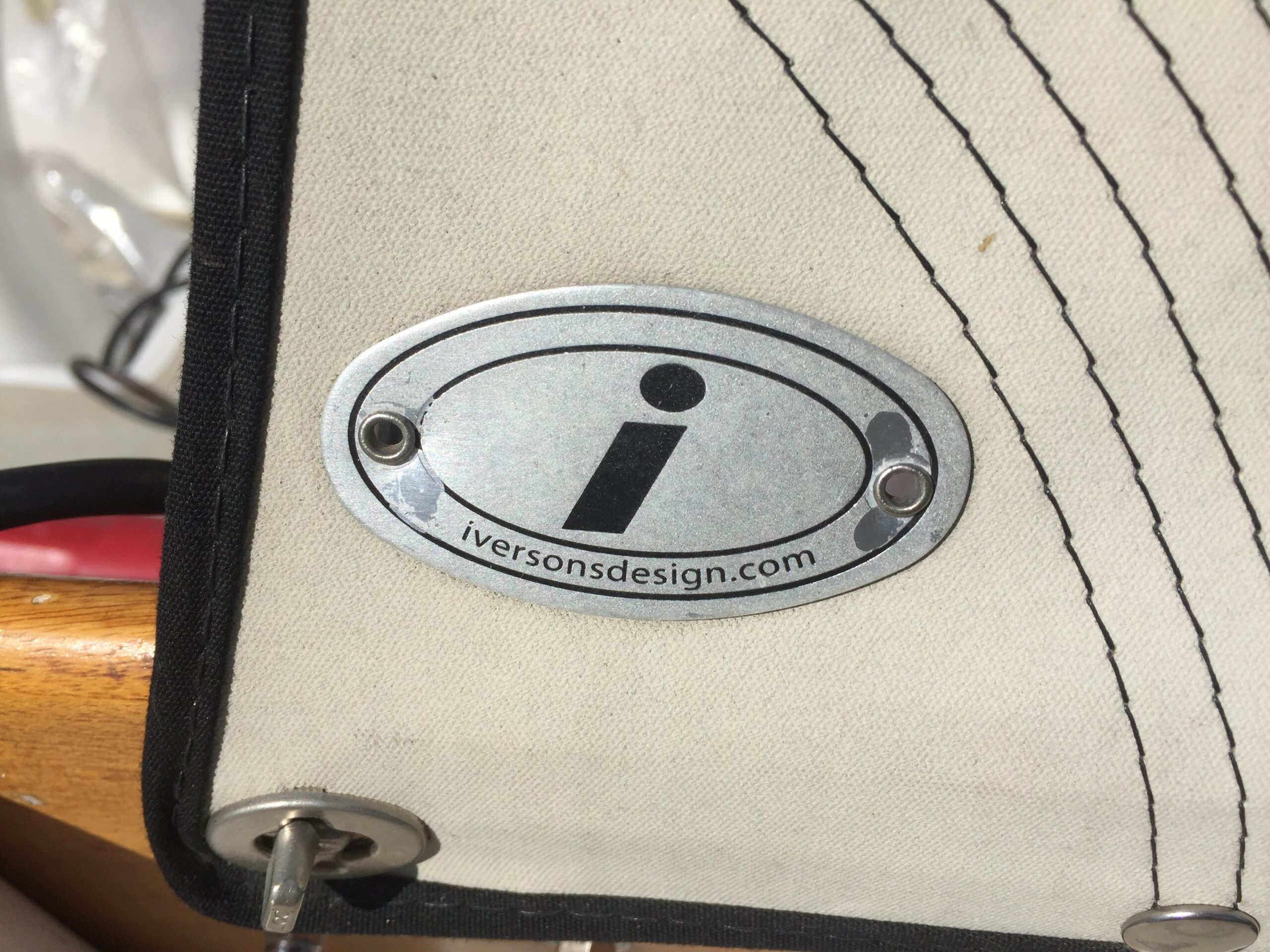

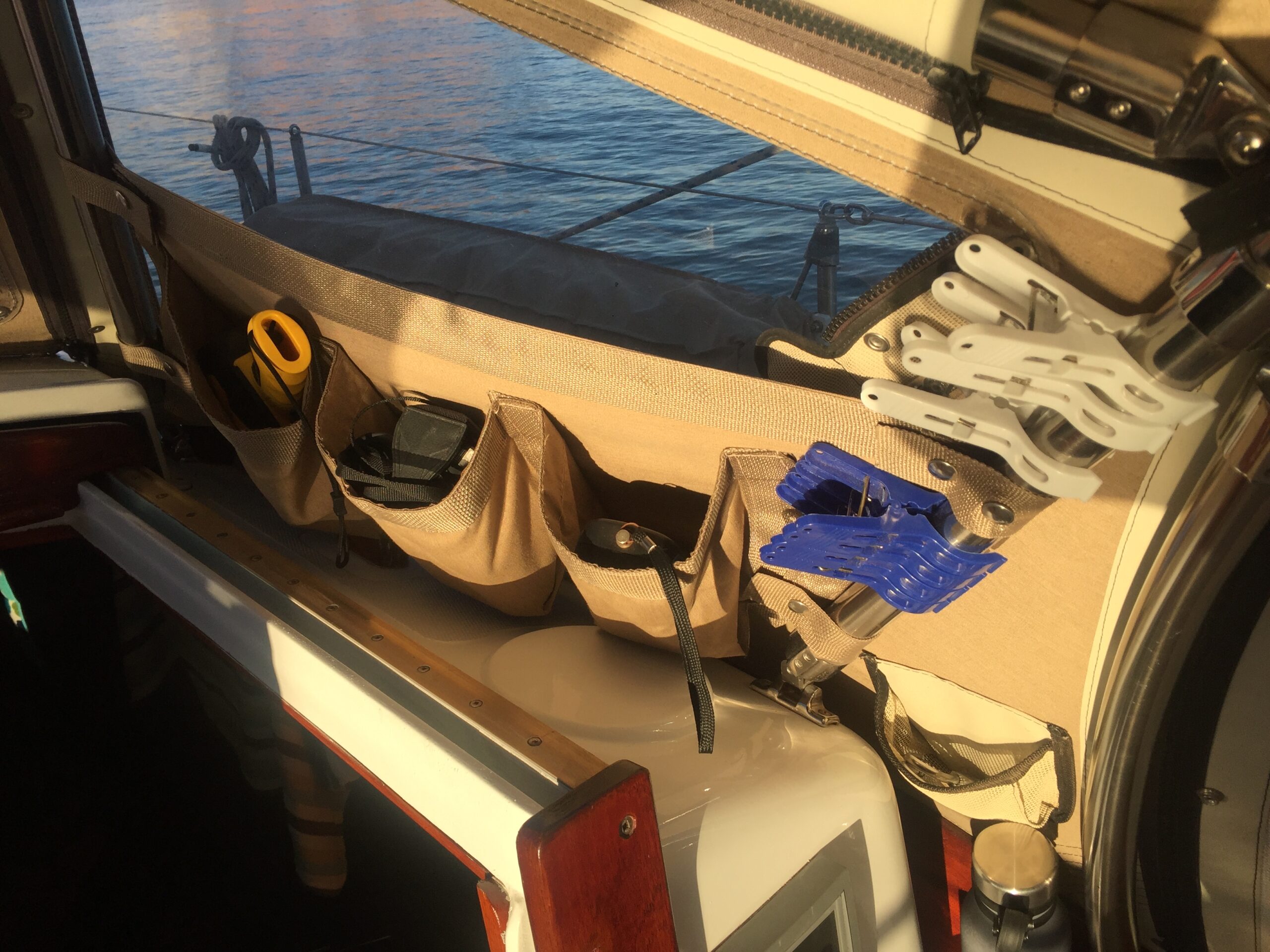

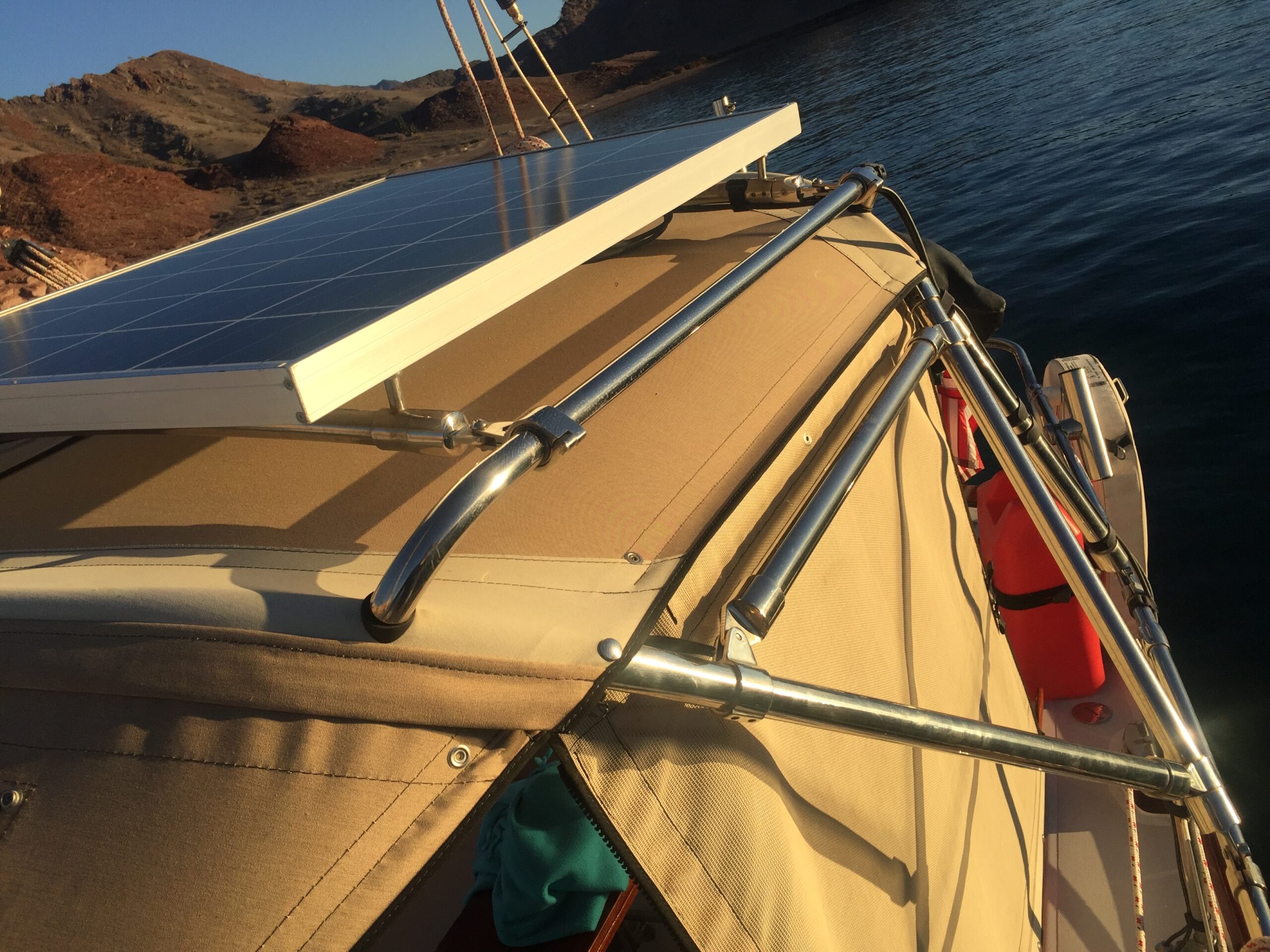

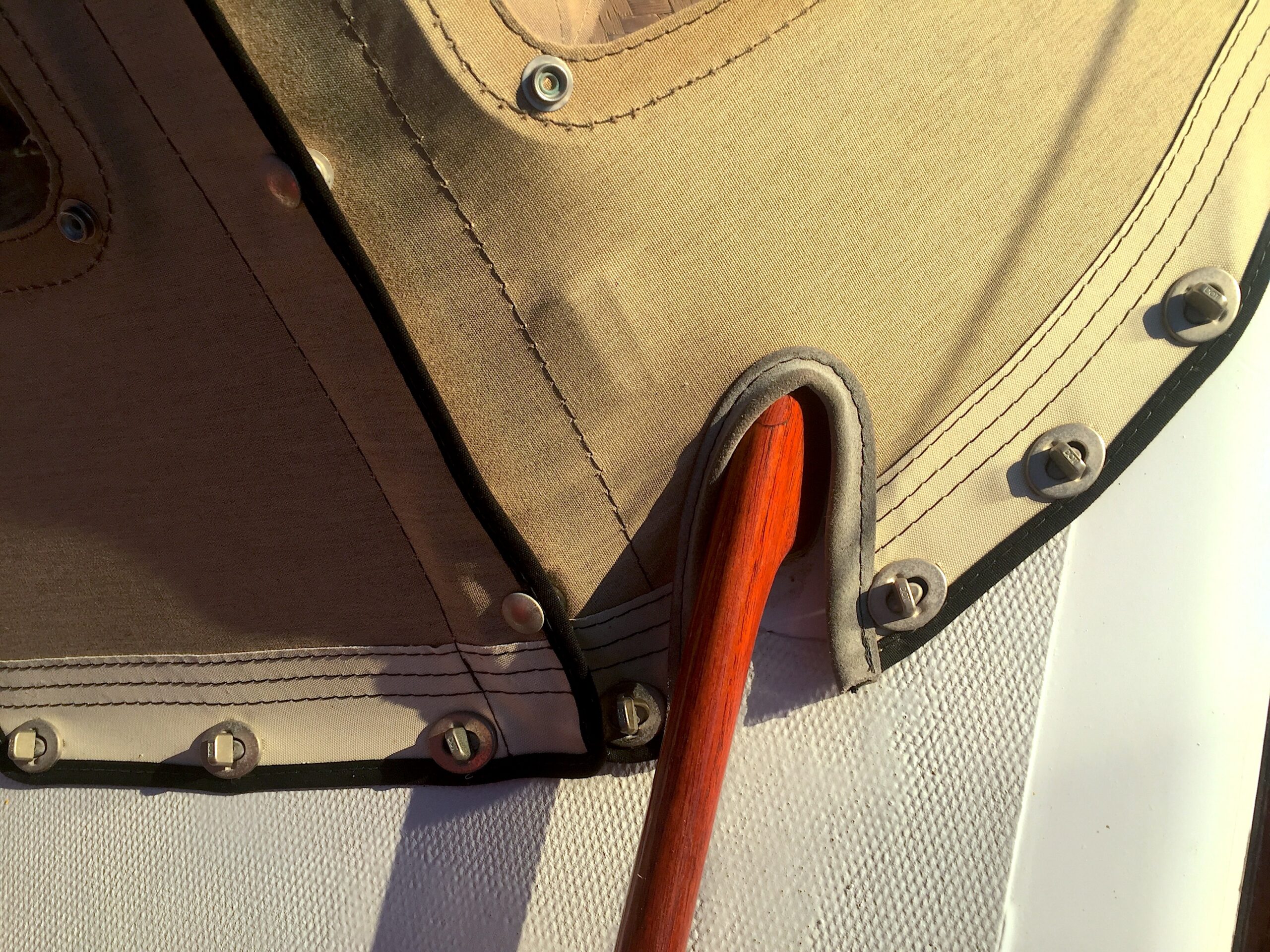

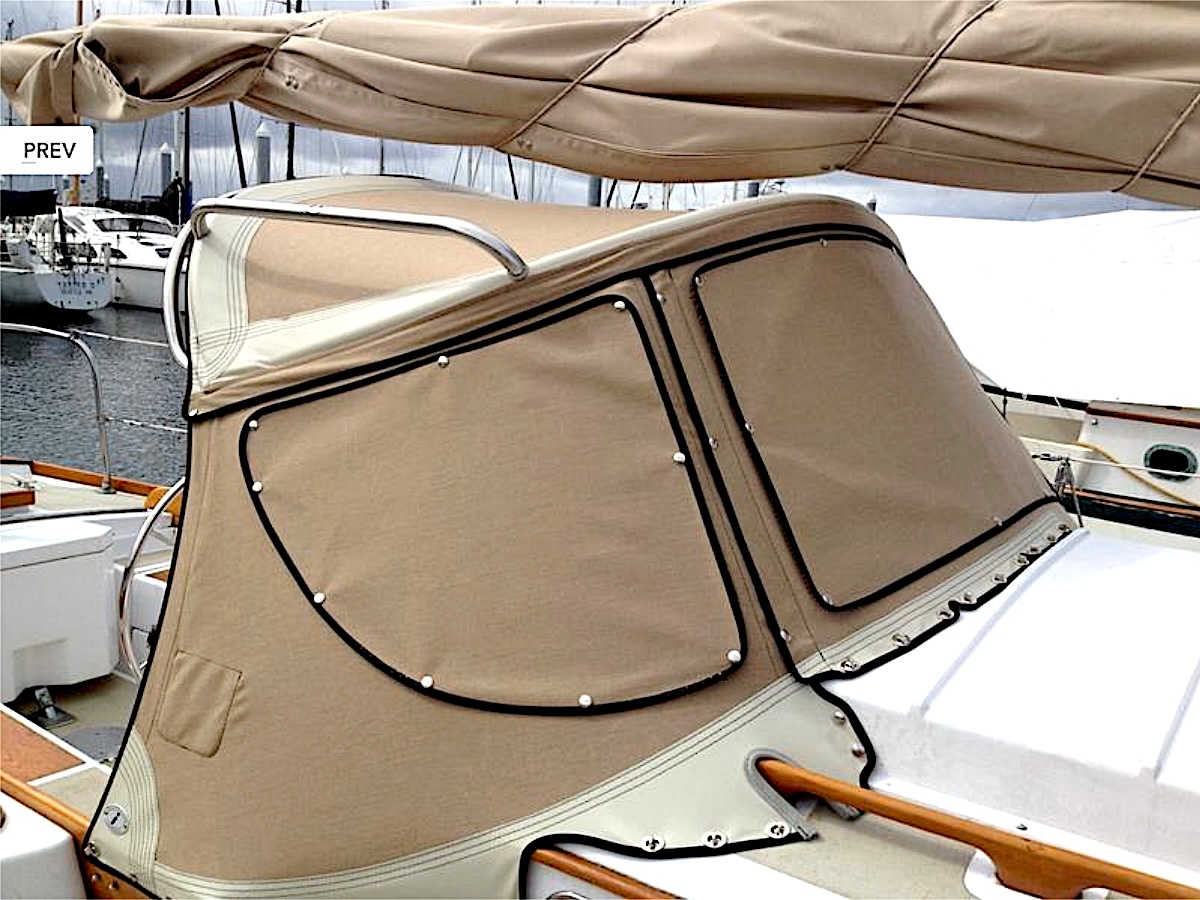

Dodger Made by Iverson 2014

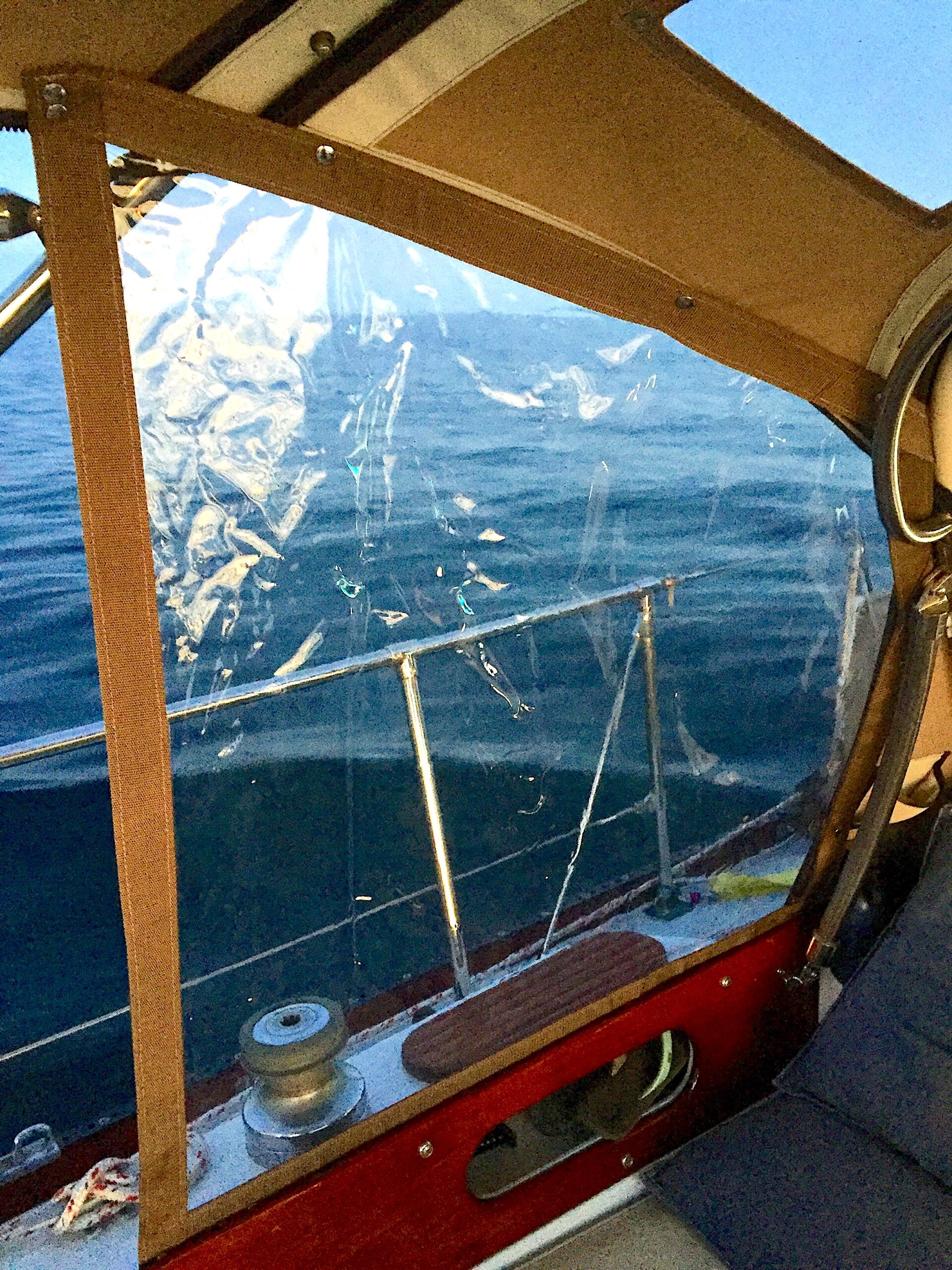

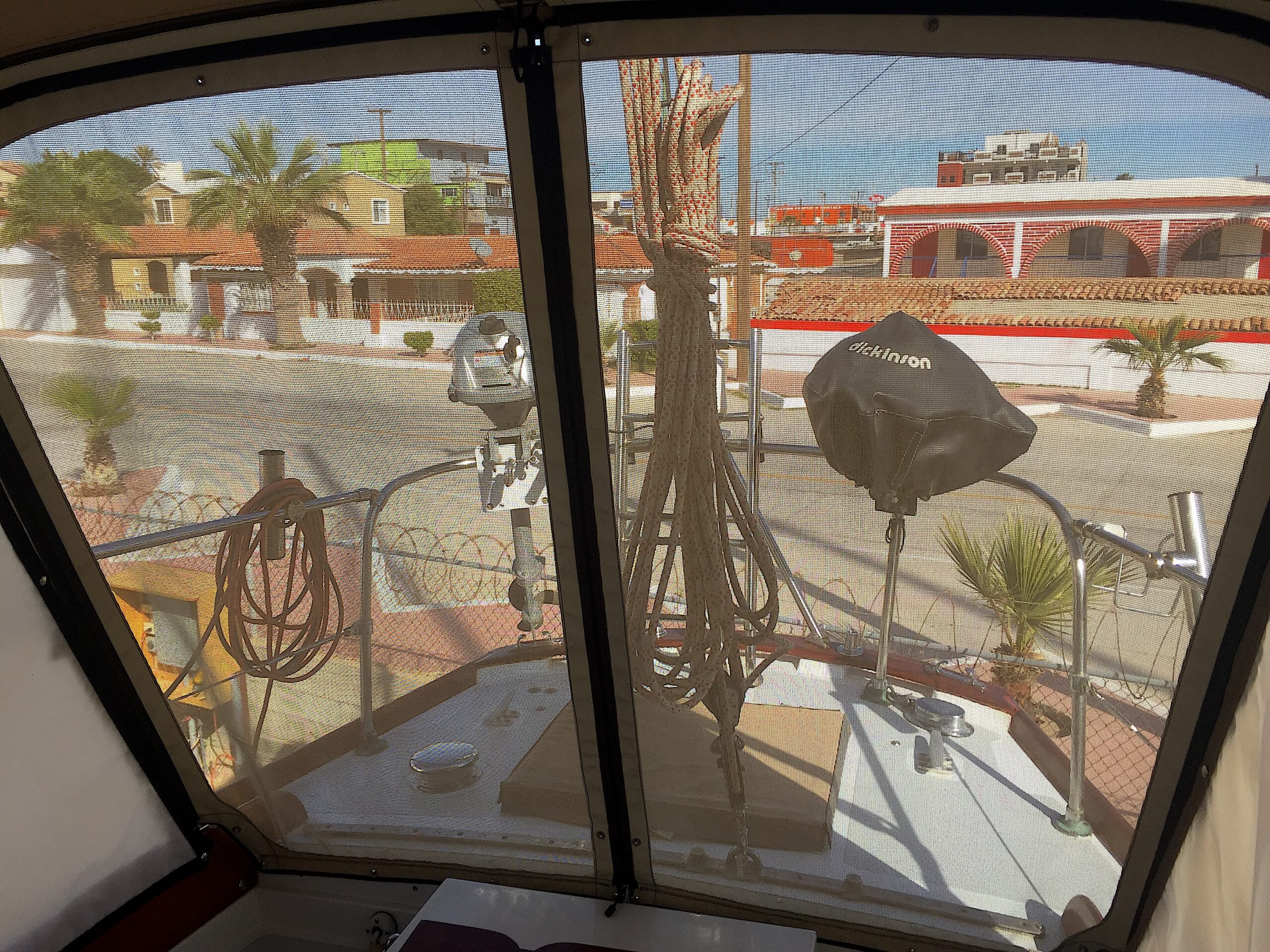

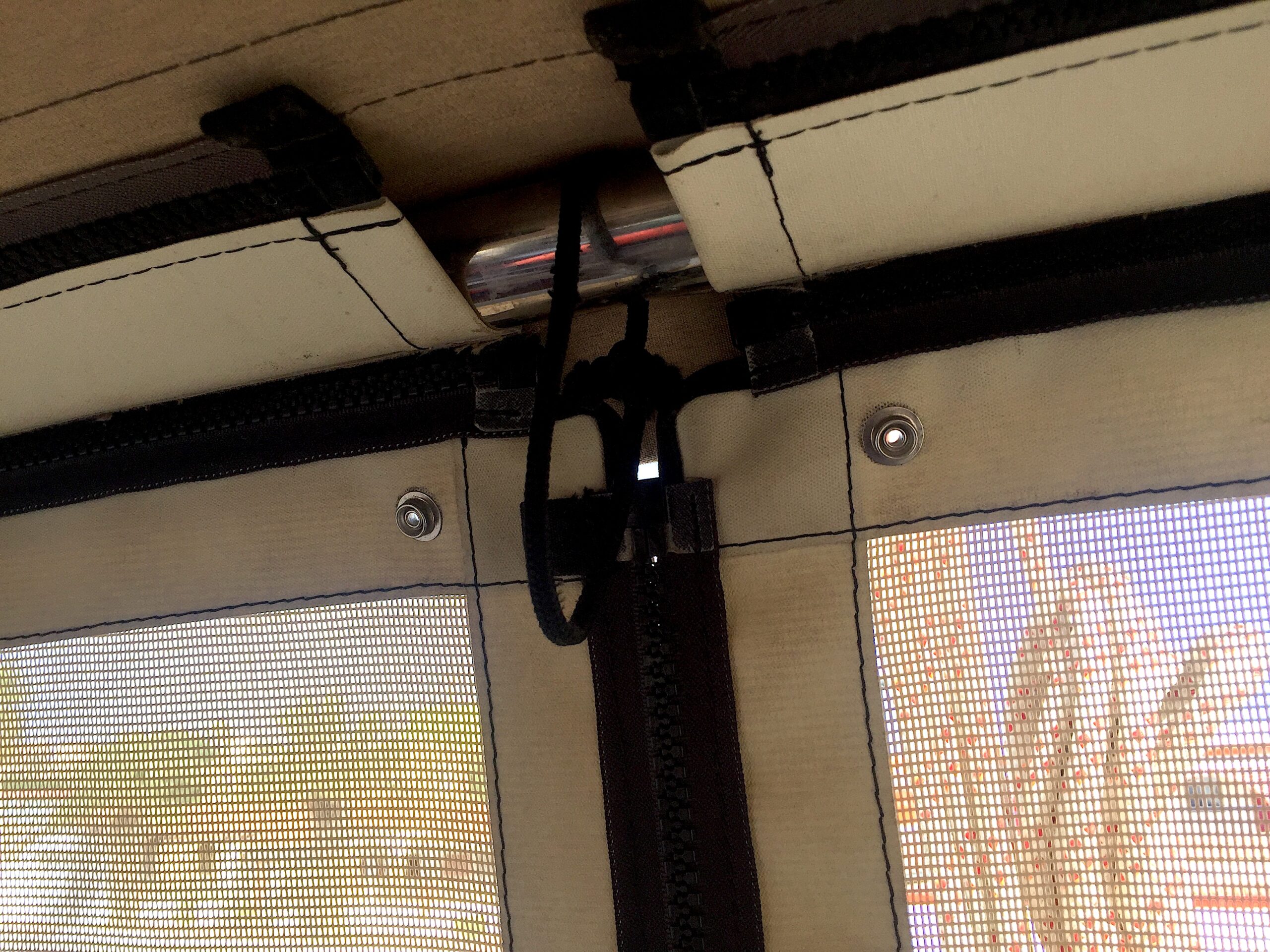

Bimini + All-round Screen Enclosures Made by Iverson 2015
WATER
Water maker Little Wonder – 6 gallons an hour at 10-14 amps
Fresh Water Pump Jabsco Sensor-Max 17 mod:31755-0000, self priming
MISC

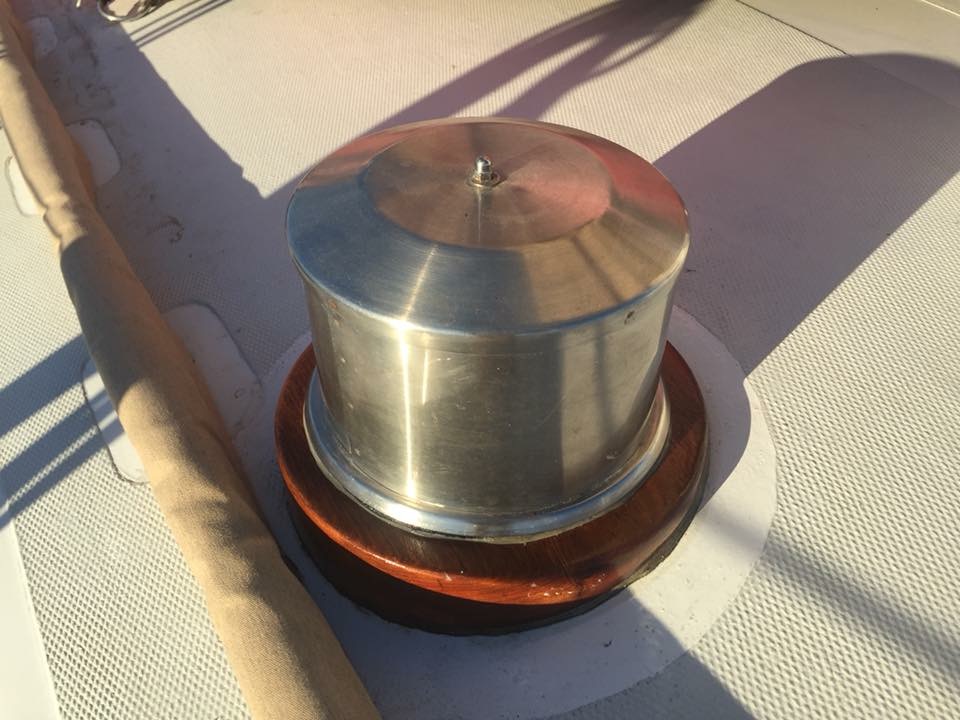

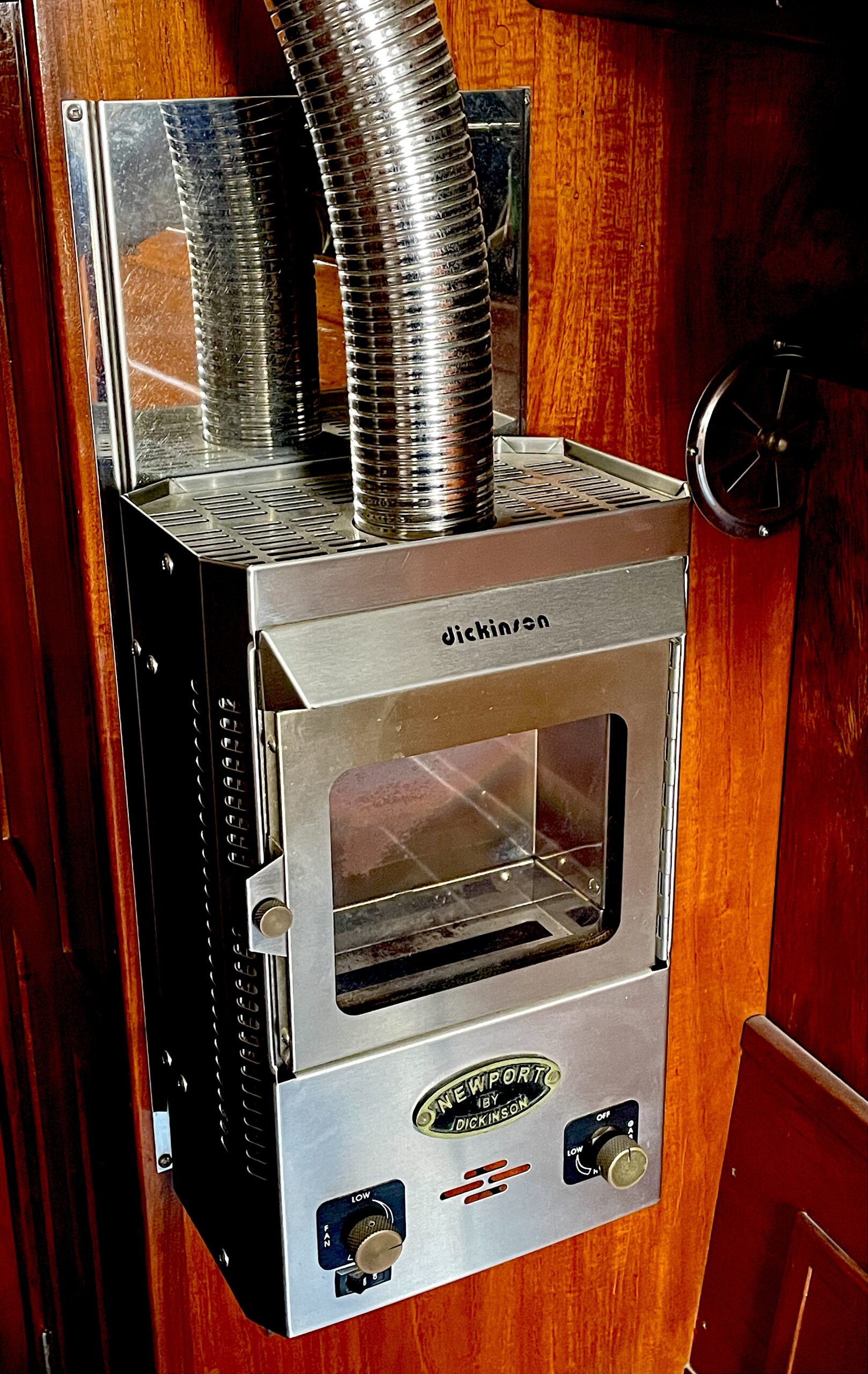

Propane Heater 2014 Dickinson P12000 wall heater

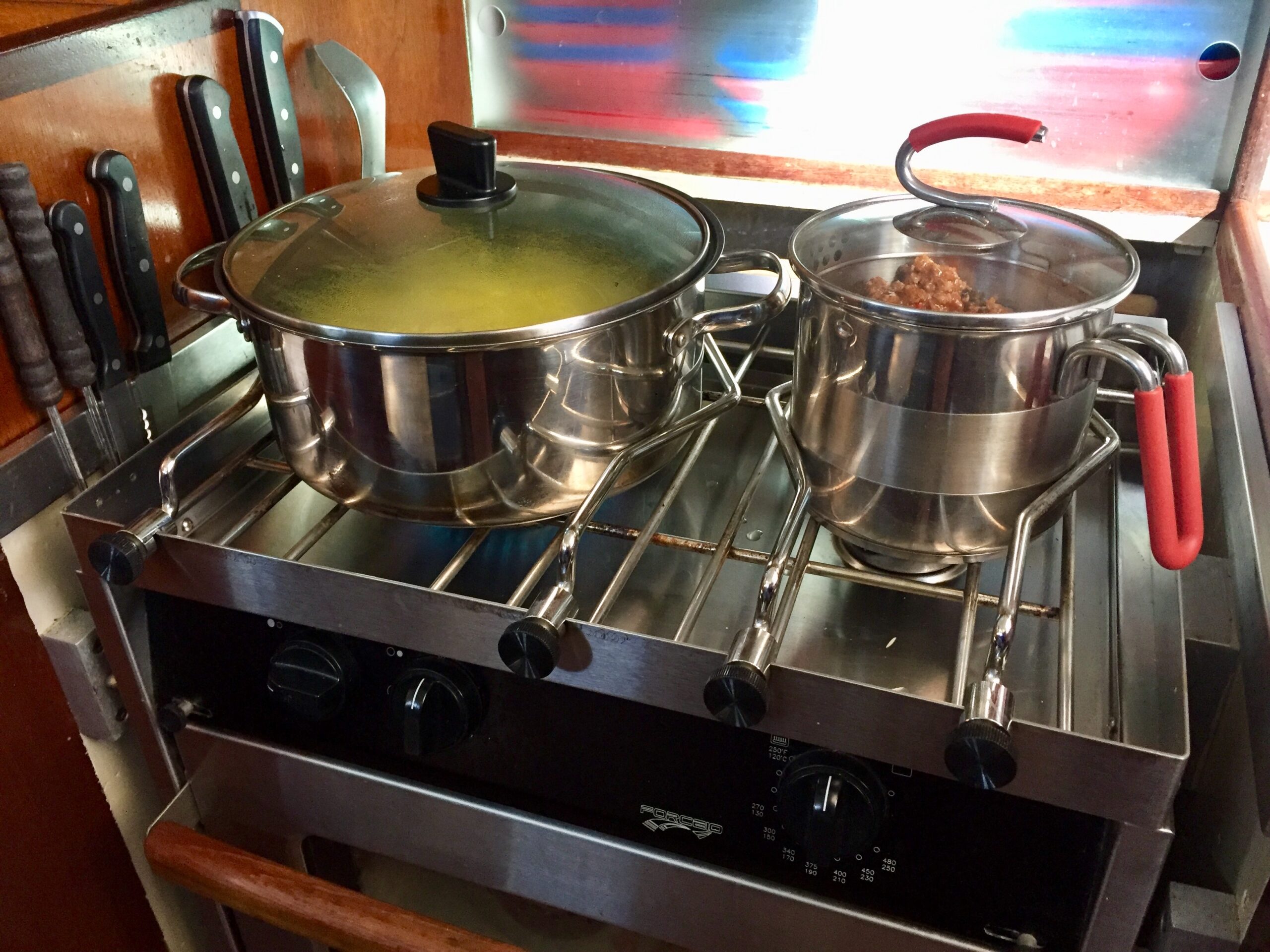

Propane Stove 2014 Force 10, 2 burner with oven, gimbaled
Propane Grill 2015 Dickinson Round Sea-B-Q
Sunbrella Fabric covers for mainsail, bow, steering column, jerrycans, hatch covers, finest no-see-um screens for companion way and v-berth hatch and shade covers for the cockpit enclosure.

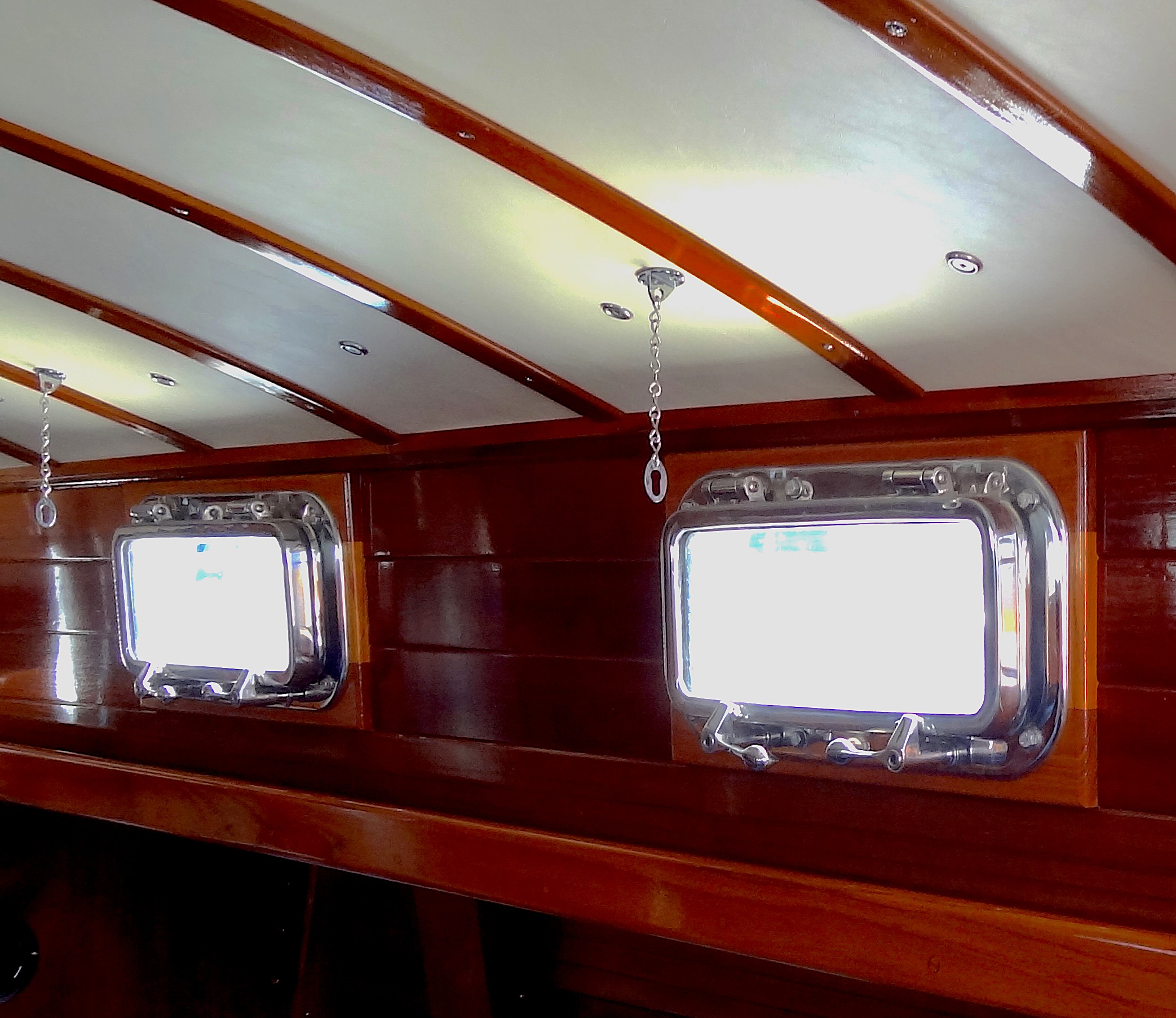

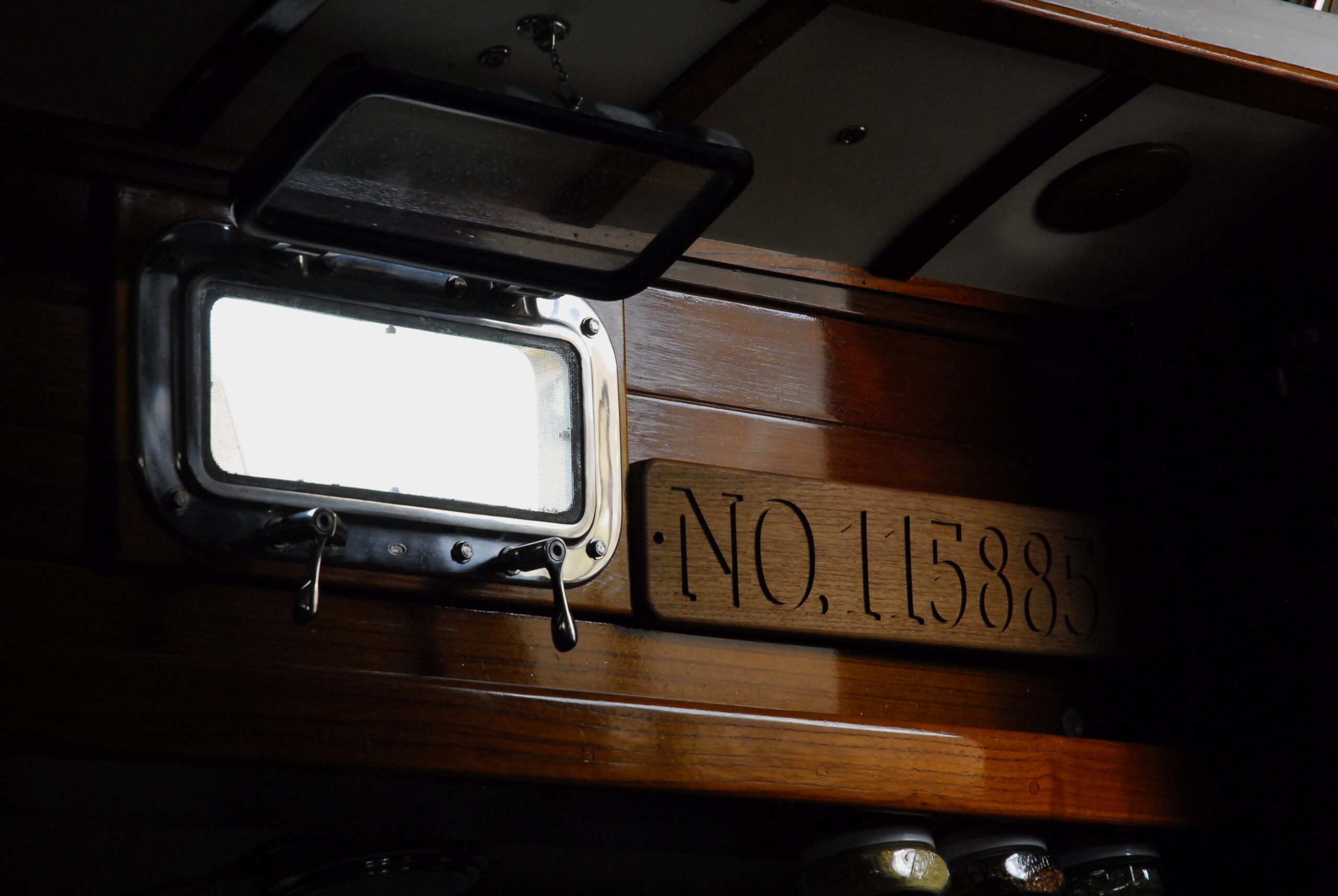

Portholes 2014 316SS Newfound Metals with Stainless Steel Mosquito Screens
Steering 2012 Hydraulic steering / wheel on a steering column
Propulsion
Engine Make:Beta/Kubota
Engine Model:BD1005EPA
Engine Year:2012
Total Power:28hp
Engine Hours:700
Engine Type:Inboard
Drive Type:Direct Drive
Fuel Type:Diesel
Propeller Type:3 Blade
Specifications
Speed & Distance
Cruising Speed:6kn
Dimensions
Length Overall:37ft
Beam:10.17ft
Cabin Headroom:6.25ft
Length at Waterline:26.58ft
Miscellaneous
Hull Material:Fiberglass
Tanks
Fresh Water Tank:80 gal
Fuel Tank:40 gal
Holding Tank:
Accommodations
Guest Cabins:2
